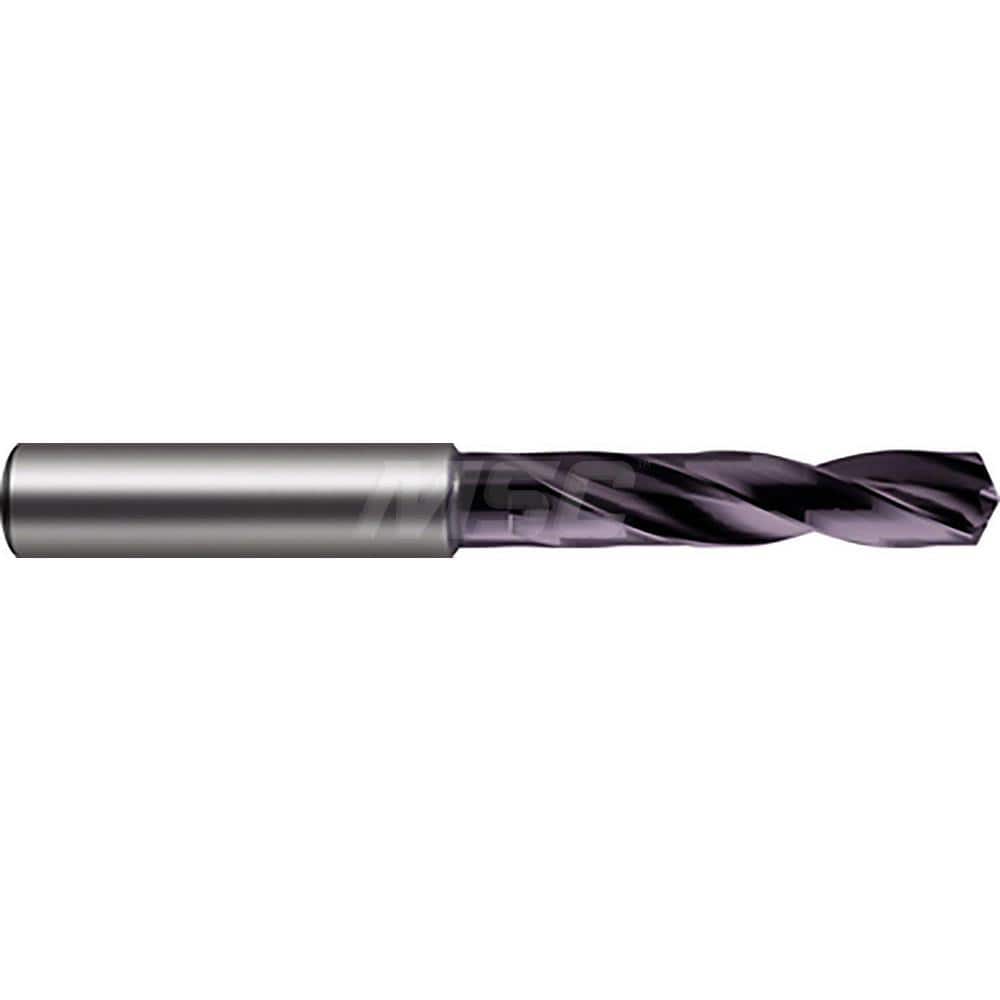

Screw Machine Length Drill Bit: 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 6498
Item #: 20881058
Brand: Guhring
Model #: 9064980091300
Product Specifications
| Drill Bit Size (Inch) | 23/64 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Series | 6498 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Number of Margins | 4 |
| Drill Length Type | Screw Machine |
| Point Type | Relieved Cone |
| Maximum Drilling Depth (mm) | 33.31 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Flute Length (mm) | 47.00 |
