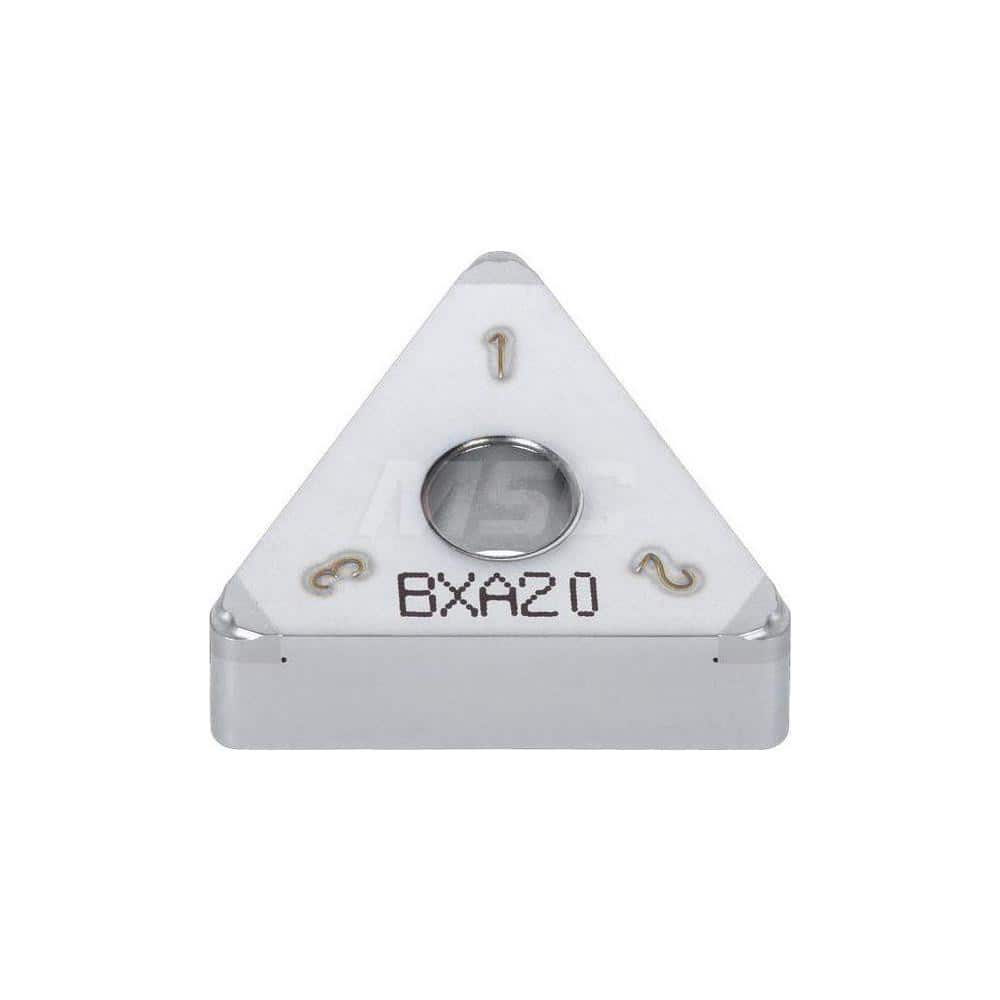

Turning Insert: 3QP-TNGM332HP BXA20, Polycrystalline Cubic Boron Nitride Coated Finish, Neutral, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, 60.0 ° N/A Triangle, Series TNGM
Item #: 20876256
Brand: Tungaloy
Model #: 6761658
Product Specifications
| Insert Style | TNGM |
| Insert Size Code | 332 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BXA20 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0079 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNGM |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 3QPTNGM332HPBXA20 |
| Iso Code | 3QP-TNGM160408-HP BXA20 |
| Chip Breaker | HP |
| Coating/Finish | Coated |
