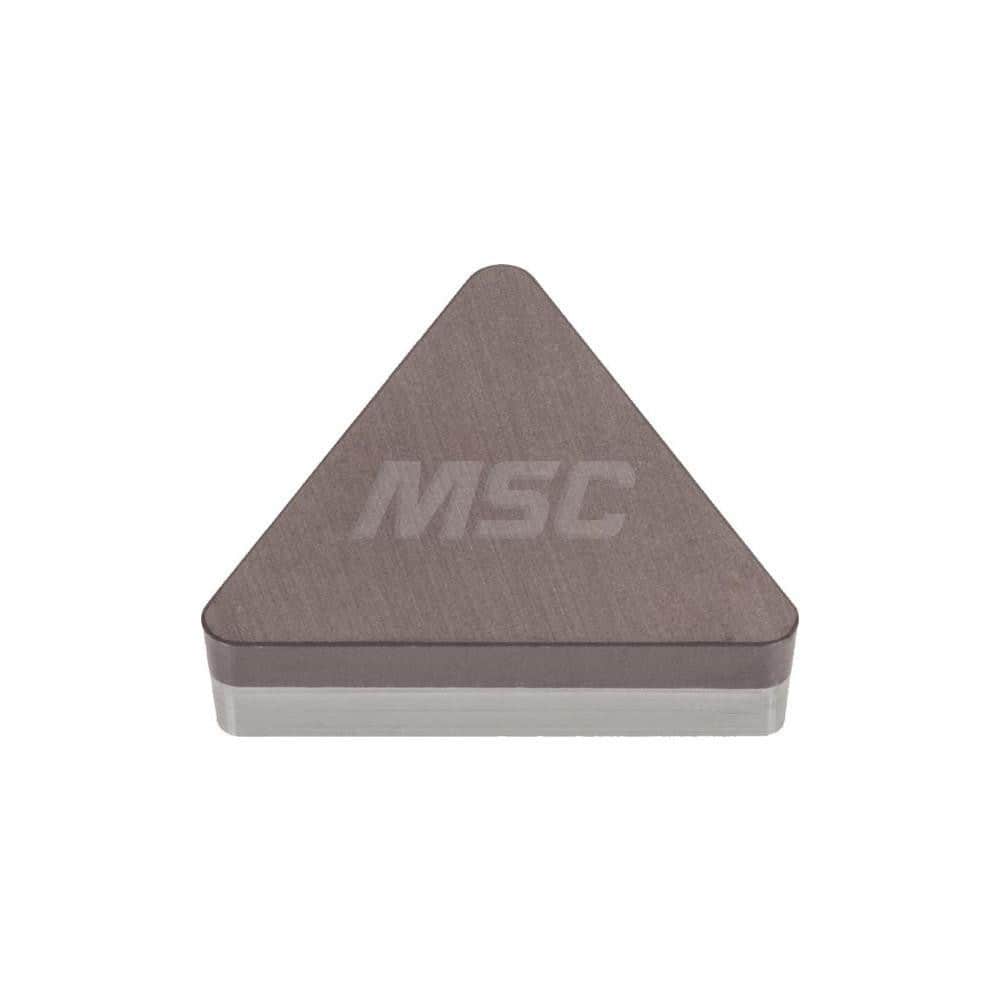

Turning Insert: TBGN522QBN BX360, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 0.0310″ Corner Radius, 60.0 ° N/A Triangle, Series TBGN
Item #: 20870523
Brand: Tungaloy
Model #: 6807552
Product Specifications
| Insert Style | TBGN |
| Insert Size Code | 522 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BX360 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0630 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 5 |
| Series | TBGN |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | TBGN522QBNBX360 |
| Iso Code | TBGN060108-15-QBN BX360 |
| Chip Breaker | FT-CBN |
| Coating/Finish | Uncoated |
