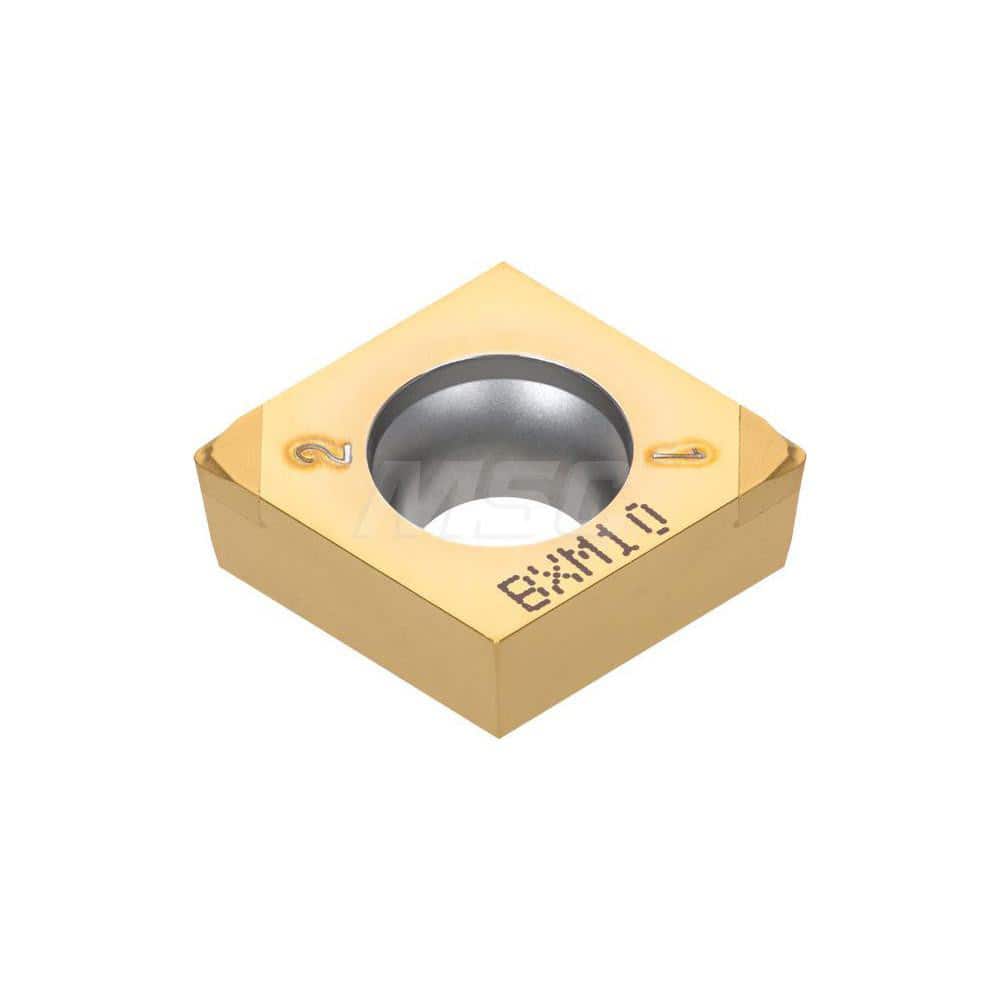

Turning Insert: 2QPCCGT32.52WLHP BXA10, Polycrystalline Cubic Boron Nitride TiAlN & TiCN Finish, Neutral, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Diamond, Series CCGT
Item #: 20869665
Brand: Tungaloy
Model #: 6792281
Product Specifications
| Insert Style | CCGT |
| Insert Size Code | 32.52 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BXA10 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.0079 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 2QPCCGT32.52WLHPBXA10 |
| Iso Code | 2QP-CCGT09T308WL-HP BXA10 |
| Chip Breaker | HP |
| Coating/Finish | TiCN; TiAlN |
