Turning Insert: SNMM868TUS T9225, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1″ Inscribed Circle, 0.1260″ Corner Radius, 90.0 ° N/A Square, Series SNMM
Item #: 20860367
Brand: Tungaloy
Model #: 6781288

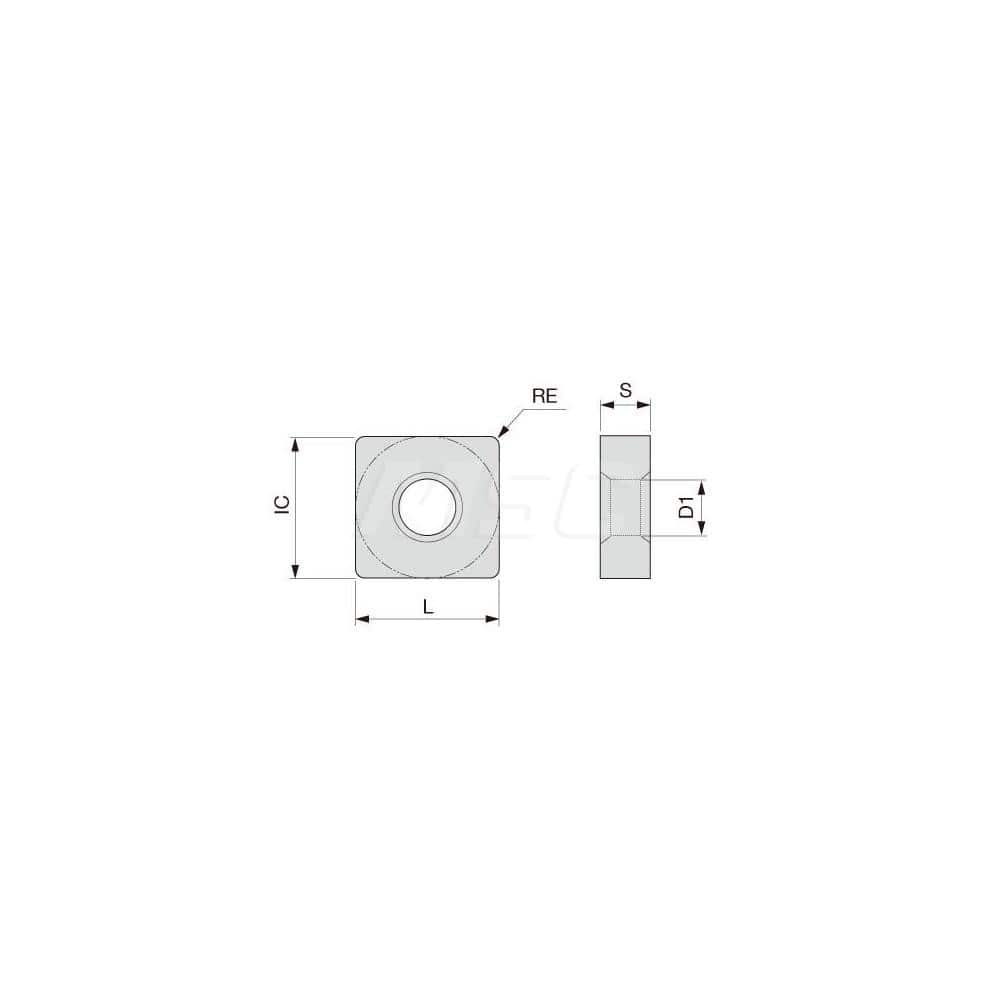

Product Specifications
| Insert Style | SNMM |
| Insert Size Code | 868 |
| Insert Shape | Square |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T9225 |
| Hole Diameter (Decimal Inch) | 0.3590 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.1260 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | SNMM |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | SNMM868TUST9225 |
| Iso Code | SNMM250932-TUS T9225 |
| Chip Breaker | TUS |
| Coating/Finish | TiCN; TiN; Al2O3 |
