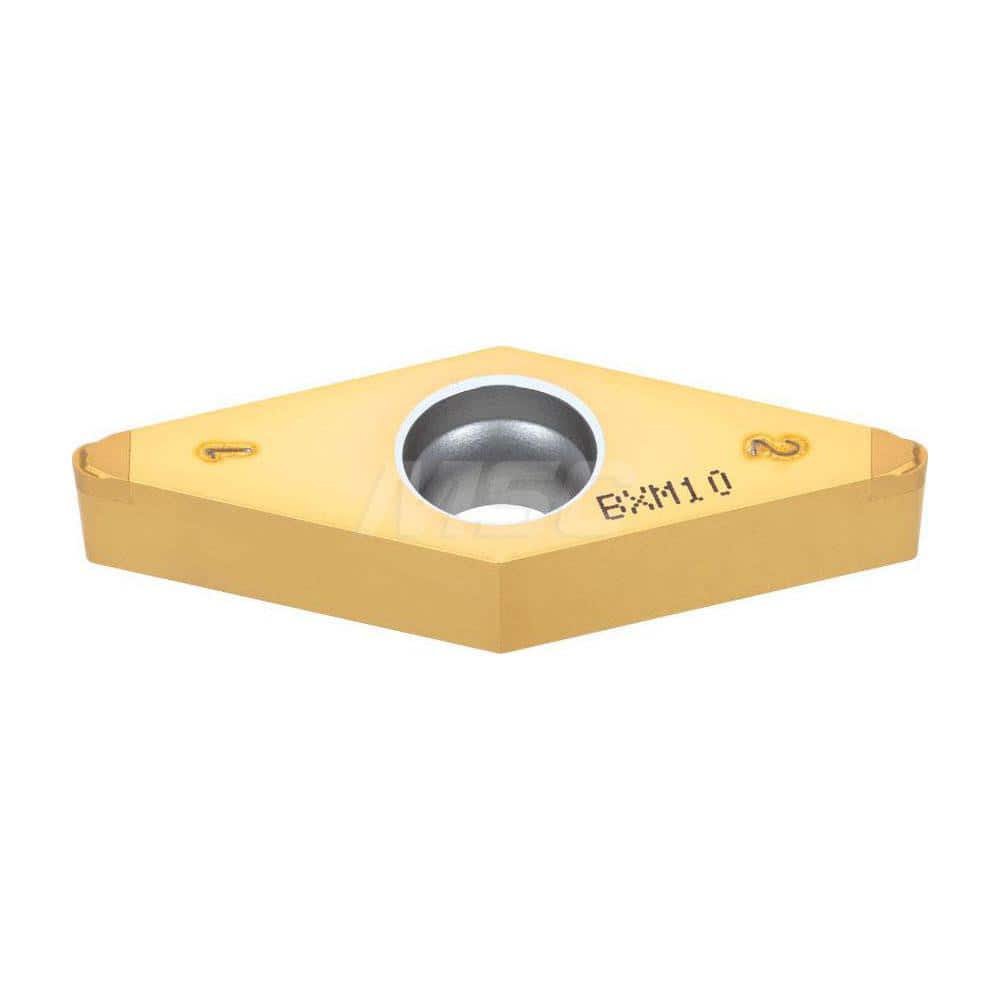

Turning Insert: 2QP-VBGT221HP BXM10, Polycrystalline Cubic Boron Nitride TiCN Finish, Neutral, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 35.0 ° N/A Diamond, Series VBGT
Item #: 20856878
Brand: Tungaloy
Model #: 6772906
Product Specifications
| Insert Style | VBGT |
| Insert Size Code | 221 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BXM10 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0079 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | VBGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 2QPVBGT221HPBXM10 |
| Iso Code | 2QP-VBGT110304-HP BXM10 |
| Chip Breaker | HP |
| Coating/Finish | TiCN |
