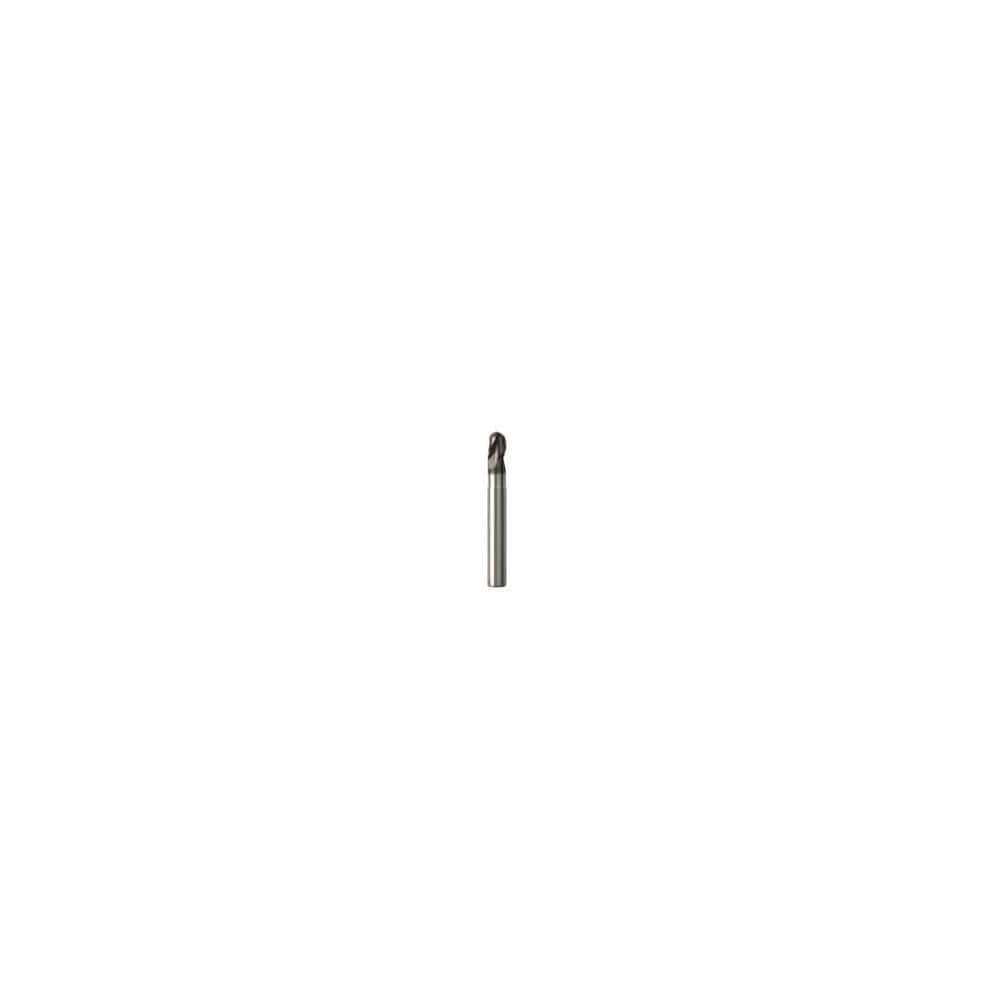

Ball End Mill: 0.3938″ Dia, 3 Flute, Solid Carbide 89 mm OAL, 10 mm Shank Dia, 30 ° Helix, NXT Coated, Single End
Item #: 20801064
Brand: Seco
Model #: 02928300
Product Specifications
Mill Diameter (Decimal Inch) | 0.3938 |
Mill Diameter (mm) | 10.00 |
Length of Cut (mm) | 10.00 |
End Mill Material | Solid Carbide |
End Type | Ball |
Extended Reach | Yes |
Helix Angle | 30 |
Undercutting | No |
Variable Index | No |
Variable Helix | No |
Length Type | Short |
Helix Style | Medium |
Shank Diameter (mm) | 10.00 |
Neck Diameter (mm) | 9.50 |
Nose Radius (Decimal Inch) | 0.1969 |
Neck Length (Inch) | 30 |
Neck Length (Decimal Inch) | 30.0000 |
Reach Length (mm) | 40.00 |
Overall Length (mm) | 89.00 |
Mill Diameter Tolerance | -0.025 to 0.047 |
Maximum Helix Angle | 30.00 |
Minimum Helix Angle | 30.00 |
Flute Direction | Right Hand |
Cutting Direction | Right Hand |
Centercutting | Yes |
Coating Classification | PVD |
Single Or Double End | Single |
Number Of Flutes | 3 |
Coating/Finish | NXT |
Manufacturers Catalog Number | JS533100E2B.0Z3-NXT |
