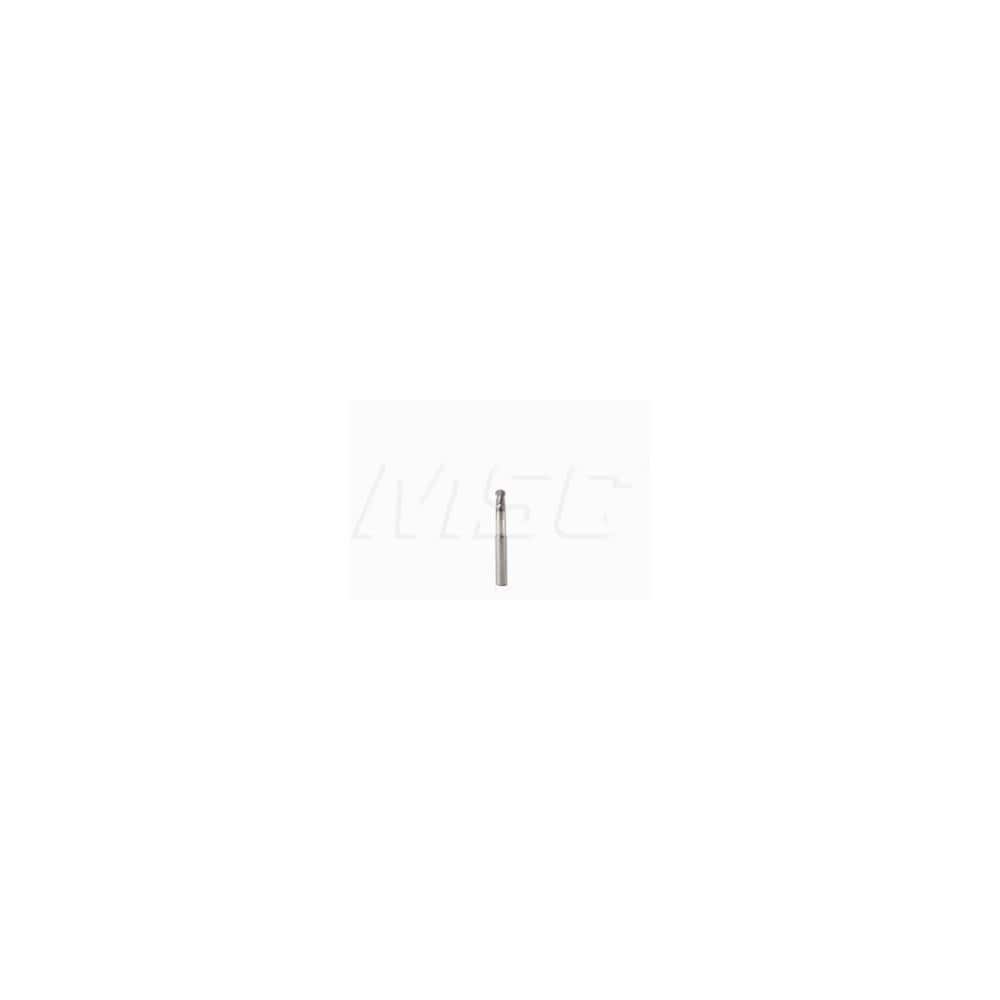

Ball End Mill: 0.1969″ Dia, 2 Flute, Solid Carbide 50 mm OAL, 6 mm Shank Dia, 50 ° Helix, MEGA-T Coated, Single End
Item #: 20801007
Brand: Seco
Model #: 00022980
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1969 |
| Mill Diameter (mm) | 5.00 |
| Length of Cut (mm) | 4.50 |
| End Mill Material | Solid Carbide |
| End Type | Ball |
| Extended Reach | Yes |
| Helix Angle | 50 |
| Undercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Length Type | Short |
| Helix Style | High |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 4.50 |
| Nose Radius (Decimal Inch) | 0.0984 |
| Neck Length (Inch) | 18 |
| Neck Length (Decimal Inch) | 18.0000 |
| Reach Length (mm) | 22.50 |
| Overall Length (mm) | 50.00 |
| Mill Diameter Tolerance | -0.02 to -0.04 |
| Maximum Helix Angle | 50.00 |
| Minimum Helix Angle | 50.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | MEGA-T |
| Manufacturers Catalog Number | 450050-MEGA-T |
