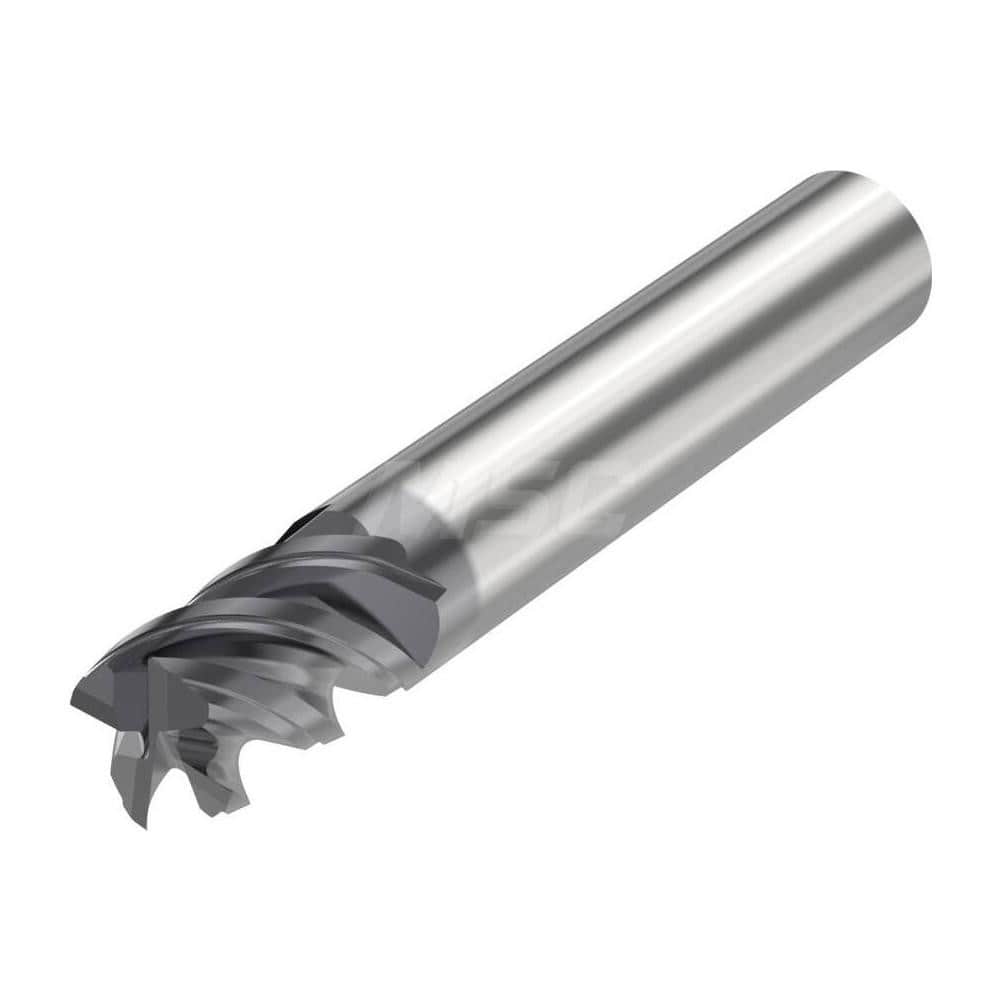

Corner Radius End Mill: 0.315″ Dia, 4 Flutes, Solid Carbide 48 ° Helix, SIRON-A Coated, Corner Chamfer End, Centercutting, Series JS554
Item #: 20800611
Brand: Seco
Model #: 10041456
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3150 |
| Chamfer Width (mm) | 0.100 |
| Mill Diameter (mm) | 8.00 |
| Chamfer Angle | 45.000 |
| Length of Cut (mm) | 11.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Chamfer |
| Length Type | Stub |
| Flute Type | Helical |
| Helix Angle | 48 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 8.0000 |
| Overall Length (mm) | 50.00 |
| Minimum Helix Angle | 48.00 |
| Maximum Helix Angle | 48.00 |
| Mill Diameter Tolerance | -0.025000 to -0.040000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| TIR Maximum (mm) | 0.01 |
| Material Application | Super Alloy; Stainless Steel; Aluminum; Cast Iron; Steel; Hardened Materials |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Manufacturers Catalog Number | JS554080D1C.0Z4-SIRA |
| Coating/Finish | SIRON-A |
