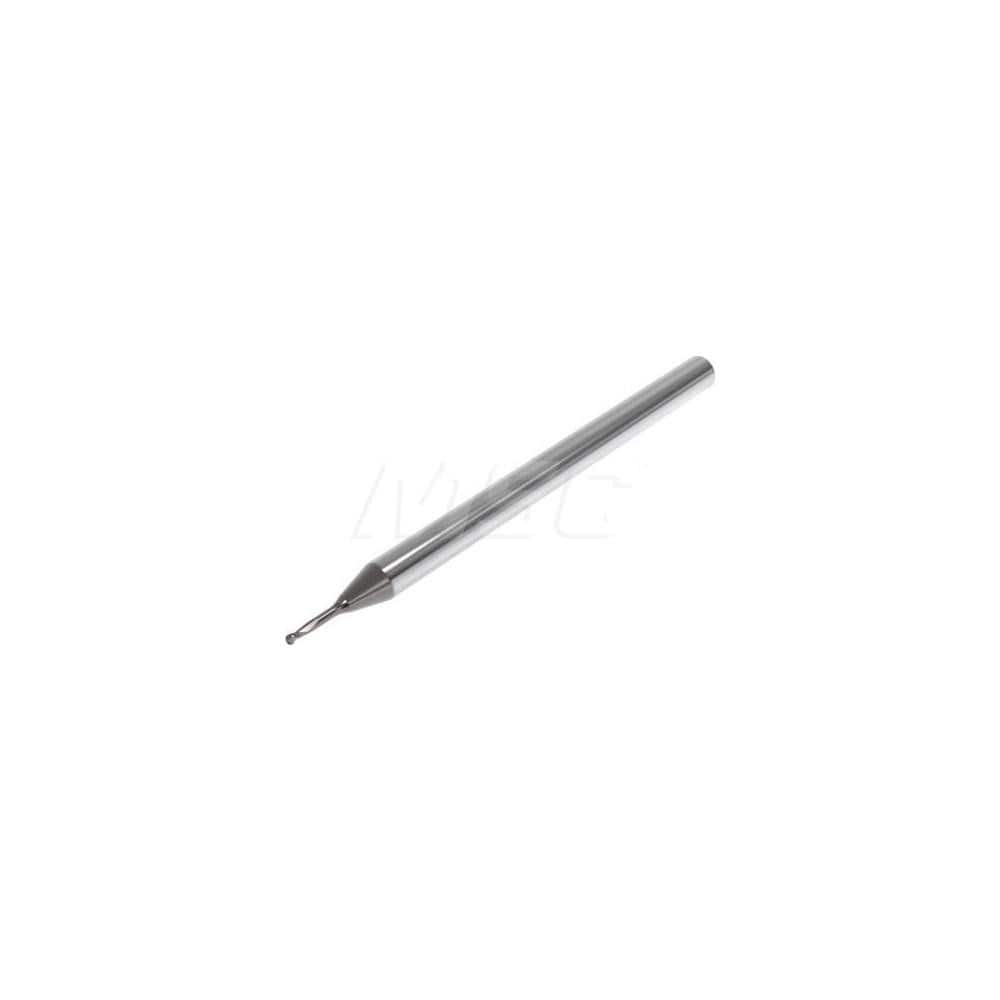

Ball End Mill: 0.0788″ Dia, 2 Flute, Solid Carbide 60 mm OAL, 4 mm Shank Dia, 30 ° Helix, Diamond Coated, Single End
Item #: 20800397
Brand: Seco
Model #: 03215393
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0788 |
| Mill Diameter (mm) | 2.00 |
| Length of Cut (mm) | 3.00 |
| End Mill Material | Solid Carbide |
| End Type | Ball |
| Extended Reach | Yes |
| Helix Angle | 30 |
| Undercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Length Type | Extra Long |
| Helix Style | Medium |
| Shank Diameter (mm) | 4.00 |
| Neck Diameter (mm) | 1.90 |
| Nose Radius (Decimal Inch) | 0.0394 |
| Neck Length (Inch) | 13 |
| Neck Length (Decimal Inch) | 13.0000 |
| Reach Length (mm) | 16.00 |
| Overall Length (mm) | 60.00 |
| Mill Diameter Tolerance | +0.000 to -0.015 |
| Maximum Helix Angle | 30.00 |
| Minimum Helix Angle | 30.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Diamond |
| Manufacturers Catalog Number | JMB642020G5B.0Z2-DIA |
