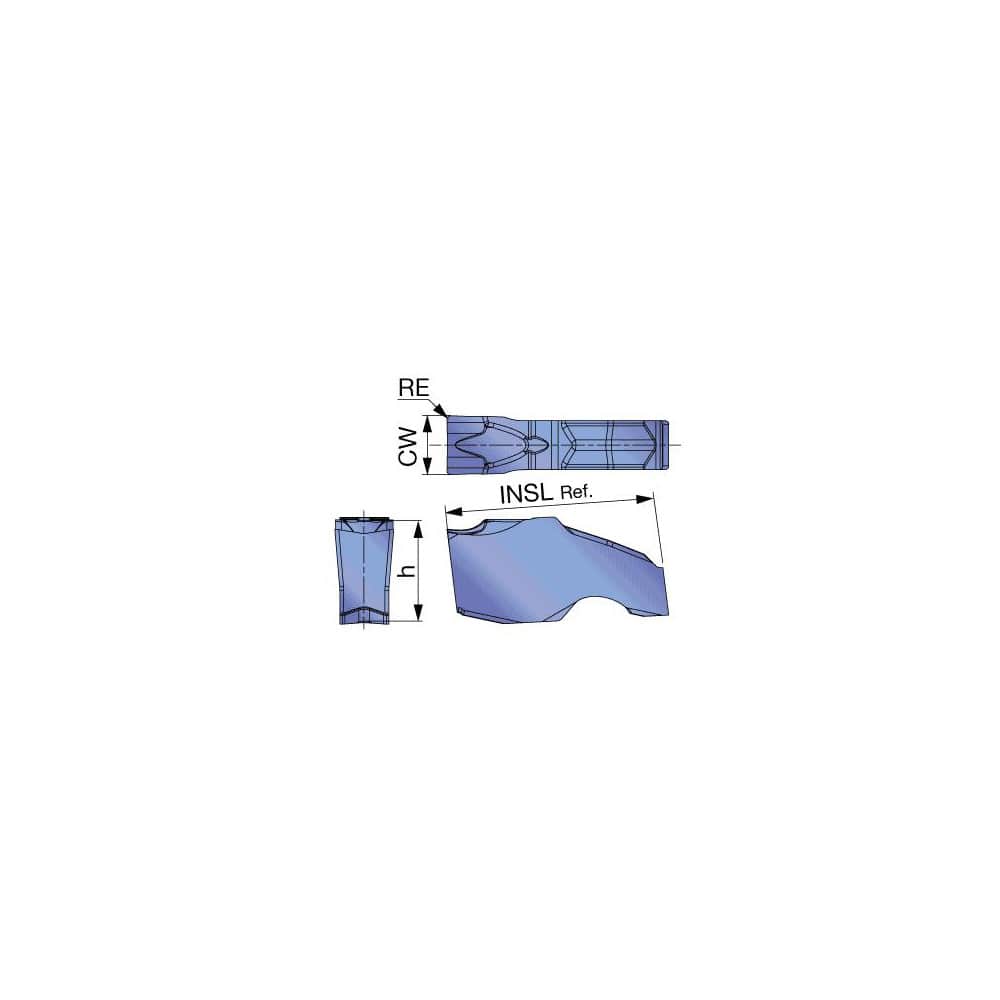

Cut-Off Inserts; Insert Style: QGM; Insert Size Code: 3020; Insert Material: Solid Carbide; Manufacturer Grade: AH7025; Cutting Width (Decimal Inch): 0.1180; Insert Holding Method: Clamp; Lead Angle Direction: Neutral; Insert Hand: Neutral; Lead Angle: 0;
Item #: 20781522
Brand: Tungaloy
Model #: 6841302
Product Specifications
| Insert Style | QGM |
| Insert Size Code | 3020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH7025 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | None |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Cut-off |
| Series | QGS |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.4300 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | QGS3-020 AH7025 |
| Iso Code | QGS3-020 AH7025 |
| Coating/Finish | Coated |
