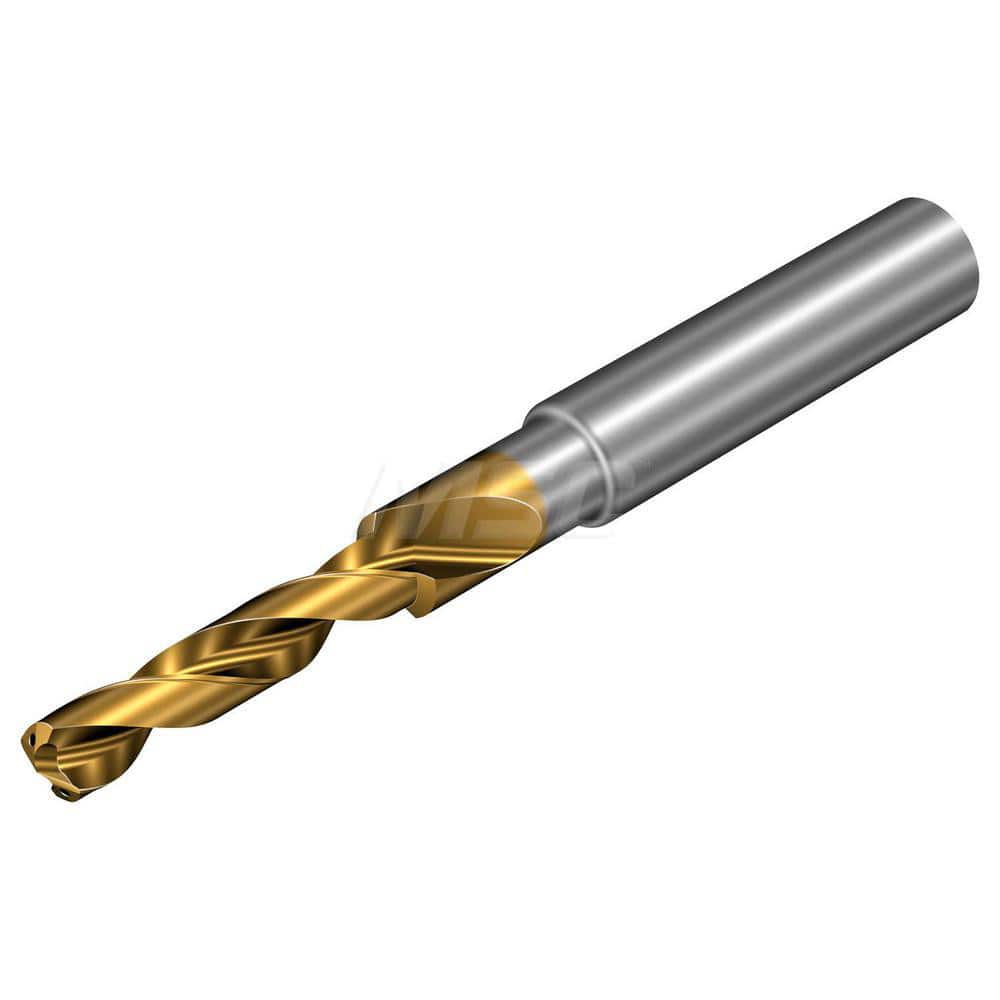

6.6mm Minor 8.9mm Major 20mm Step Length 147° High Performance Solid Carbide Subland Step Drill Bit TiAlSiN & TiSiN Finish, 89mm OAL, Series CoroDrill 860
Item #: 20749768
Brand: Sandvik Coromant
Model #: 8151505
Product Specifications
| Tool Application | Pre-Tap & Chamfer |
| Cut Tap Thread Size (Inch) | 5/16-18 |
| Form Tap Thread Size (mm) | M7 x 1.00 |
| Tool Material | Solid Carbide |
| Step Length (Decimal Inch) | 0.7874 |
| Step Length (mm) | 20.00 |
| Minor Diameter (Decimal Inch) | 0.2598 |
| Minor Diameter (mm) | 6.60 |
| Through Coolant | Yes |
| Coating/Finish | TiSiN; TiAlSiN |
| Shank Type | Straight-Cylindrical |
| Shoulder Included Angle | 90 |
| Series | CoroDrill 860 |
| Major Diameter (Decimal Inch) | 0.3504 |
| Major Diameter (mm) | 8.90 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Drill Point Angle | 147 |
| Tool Performance | High Performance |
| Number Of Flutes | 2 |
| Manufacturers Grade | P1BM |
