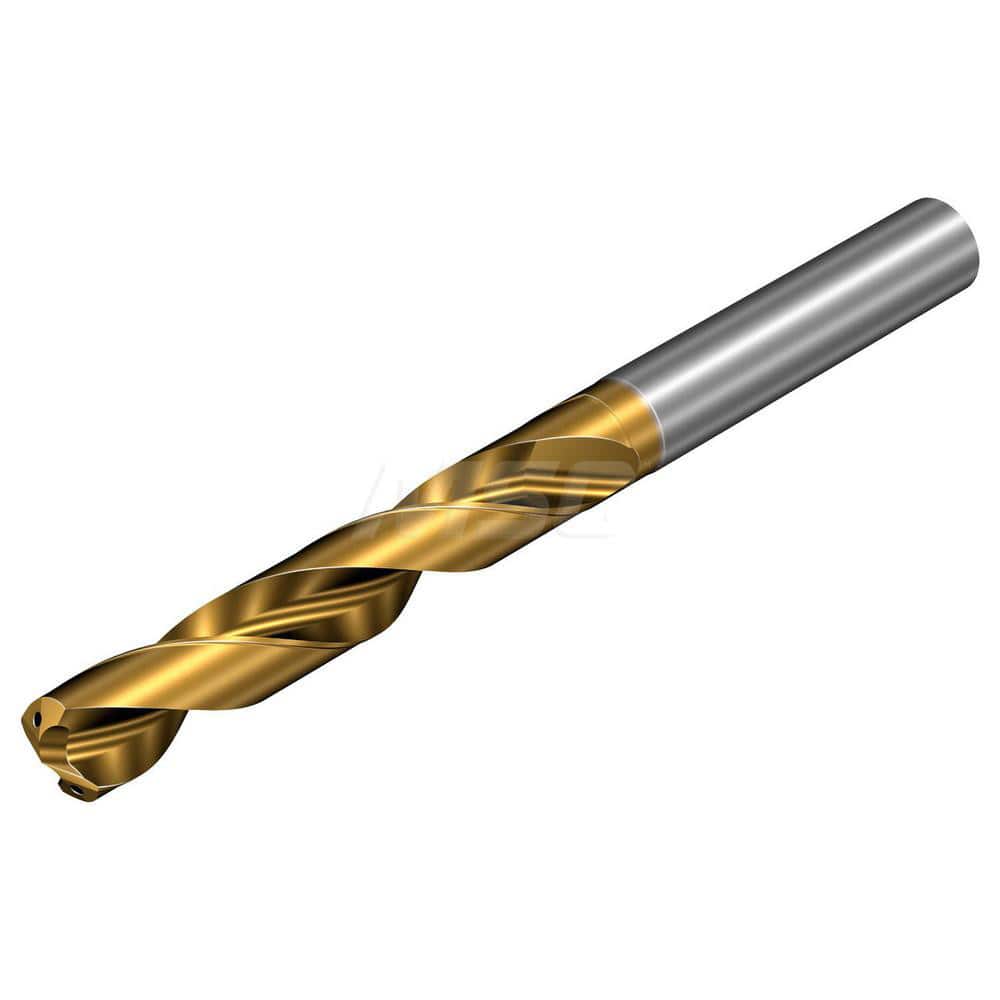

Screw Machine Length Drill Bit: 147 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 860
Item #: 20749081
Brand: Sandvik Coromant
Model #: 8151443
Product Specifications
| Drill Bit Size (mm) | 14.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 147 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Overall Length (Decimal Inch) | 4.2126 |
| Series | CoroDrill 860 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.5748 |
| Drill Point Length (Decimal Inch) | 0.0816 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 2.3622 |
