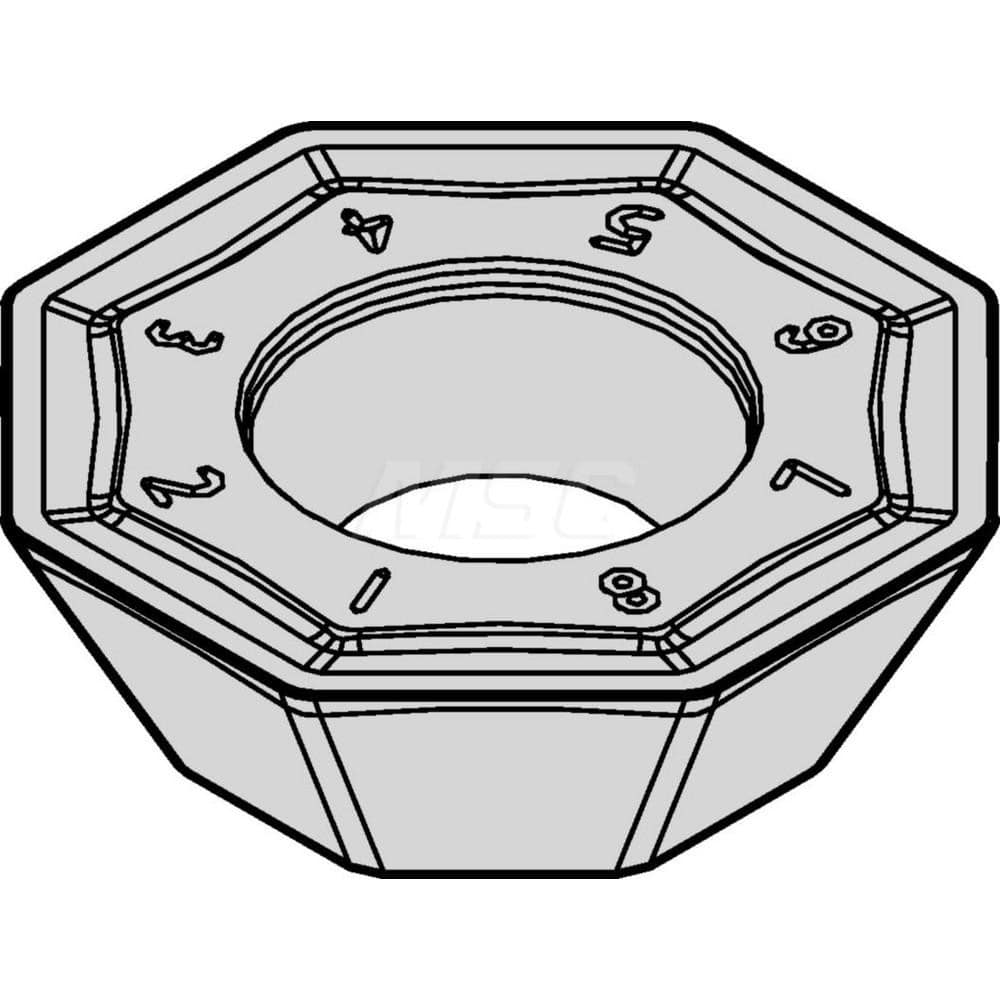

Milling Insert: OFPT06L5AFENGB, KCK20B, Solid Carbide N/A Finish,
Item #: 20734406
Brand: Kennametal
Model #: 6969261
Product Specifications
| Insert Style | OFPT |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCK20B |
| Inscribed Circle (Decimal Inch) | 0.5787 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | KSOM |
| Hole Diameter (Decimal Inch) | 0.5787 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Octagon |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | OFPT53AFEN4GB |
| Iso Code | OFPT06L5AFENGB |
| Chip Breaker | GB |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
