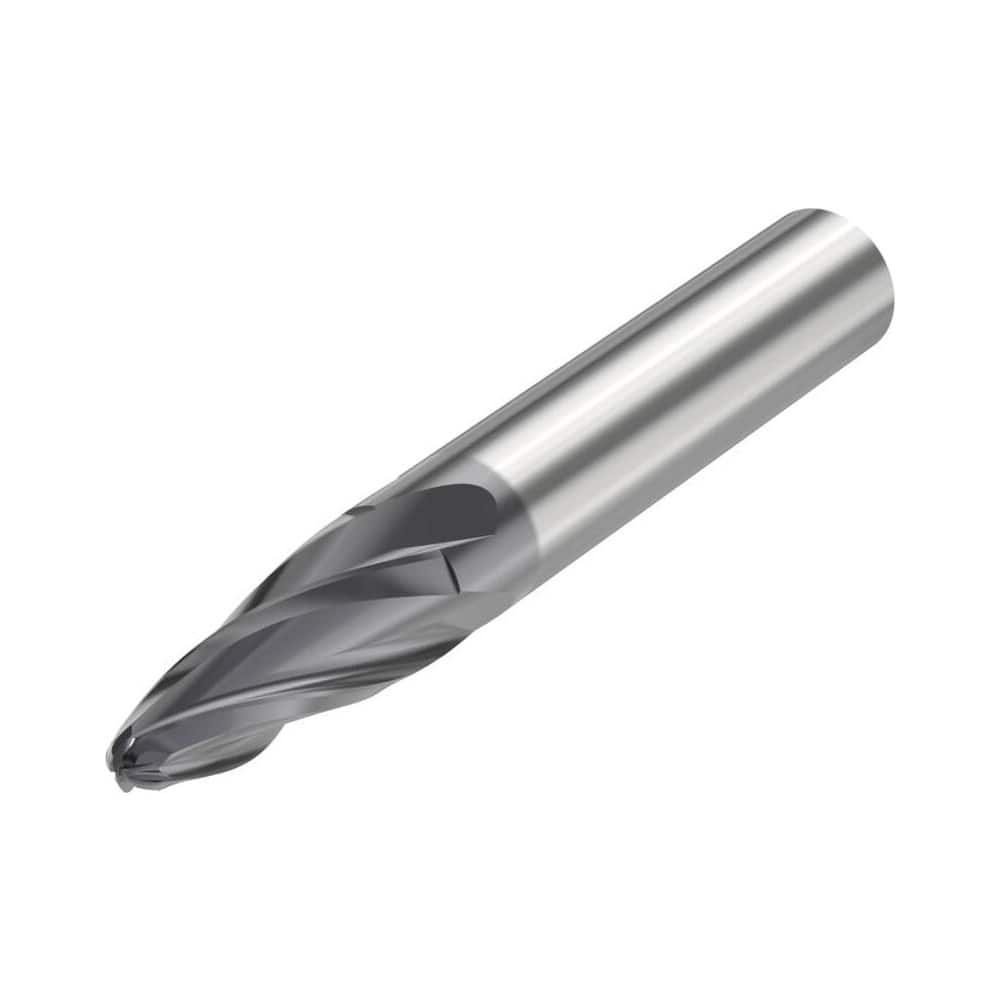

Tapered End Mill: 20 ° per Side, 4 Flutes, Solid Carbide, Tapered End SIRON-A Finish, Series JH734
Item #: 20639175
Brand: Seco
Model #: 10044786
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Length of Cut (mm) | 24.87 |
| Taper Angle Per Side | 20.00 |
| End Mill Material | Solid Carbide |
| End Shape | Tapered |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 83.0000 |
| Overall Length (mm) | 83.00 |
| Centercutting | No |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 12.0000 |
| Helix Angle | 20 |
| Flute Direction | Right Hand |
| Series | JH734 |
| TIR Maximum (mm) | 0.0200 |
| Coating/Finish | SIRON-A |
| Number Of Flutes | 4 |
| Included Angle Degree | 20.00 |
