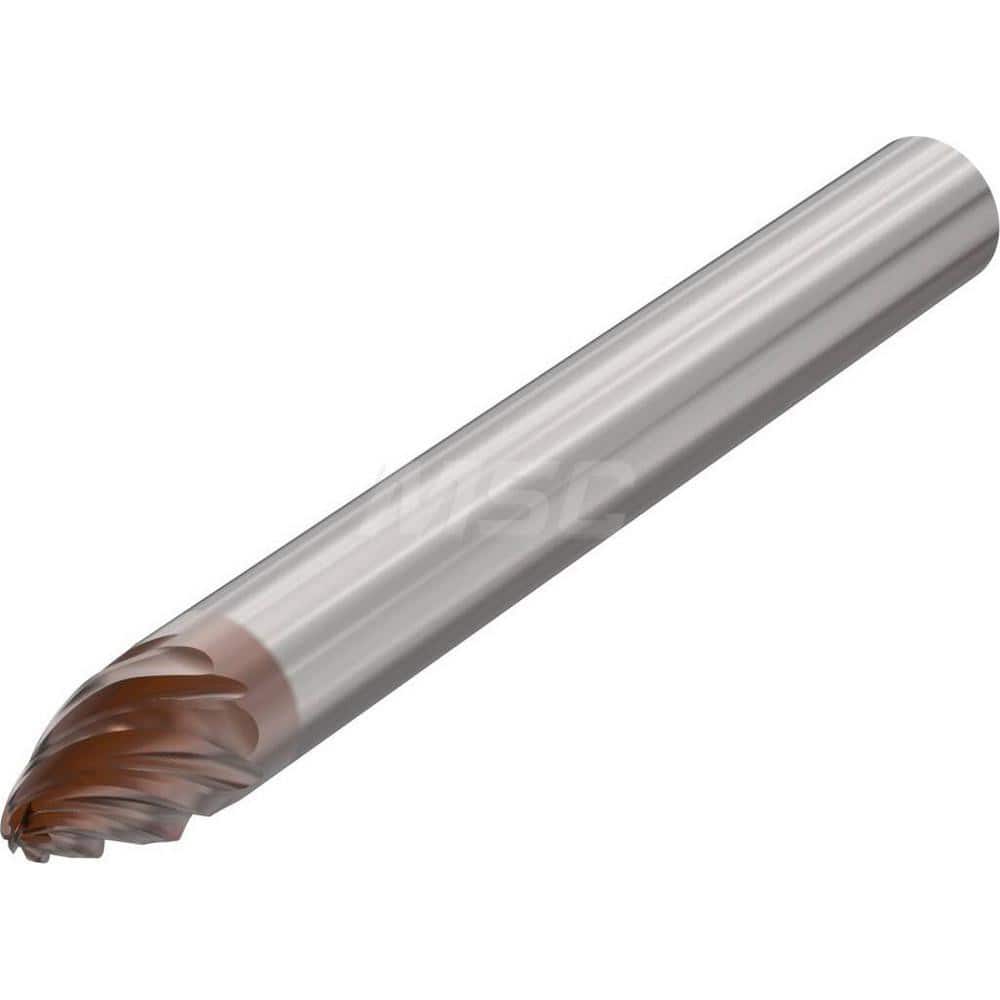

Tapered End Mill: 20 ° per Side, 0.0354″ Small Dia, 0.4921″ LOC, 6 Flutes, Solid Carbide, Tapered End HXT Finish, Series JH726
Item #: 20630232
Brand: Seco
Model #: 10106113
Product Specifications
| Length of Cut (mm) | 12.50 |
| Taper Angle Per Side | 20.00 |
| End Mill Material | Solid Carbide |
| End Shape | Tapered |
| Flute Type | Helical |
| Overall Length (mm) | 89.00 |
| Centercutting | Yes |
| Shank Diameter (mm) | 10.00 |
| Nose Radius (mm) | 3.00 |
| Small End Diameter (Decimal Inch) | 0.0354 |
| Small End Diameter (mm) | 0.90 |
| Helix Angle | 38 |
| Small End Diameter Tolerance | -0.0006/-0.0018 |
| Flute Direction | Right Hand |
| Series | JH726 |
| TIR Maximum (Decimal Inch) | 0.000800 |
| Coating Classification | PVD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.4921 |
| Coating/Finish | HXT |
| Number Of Flutes | 6 |
