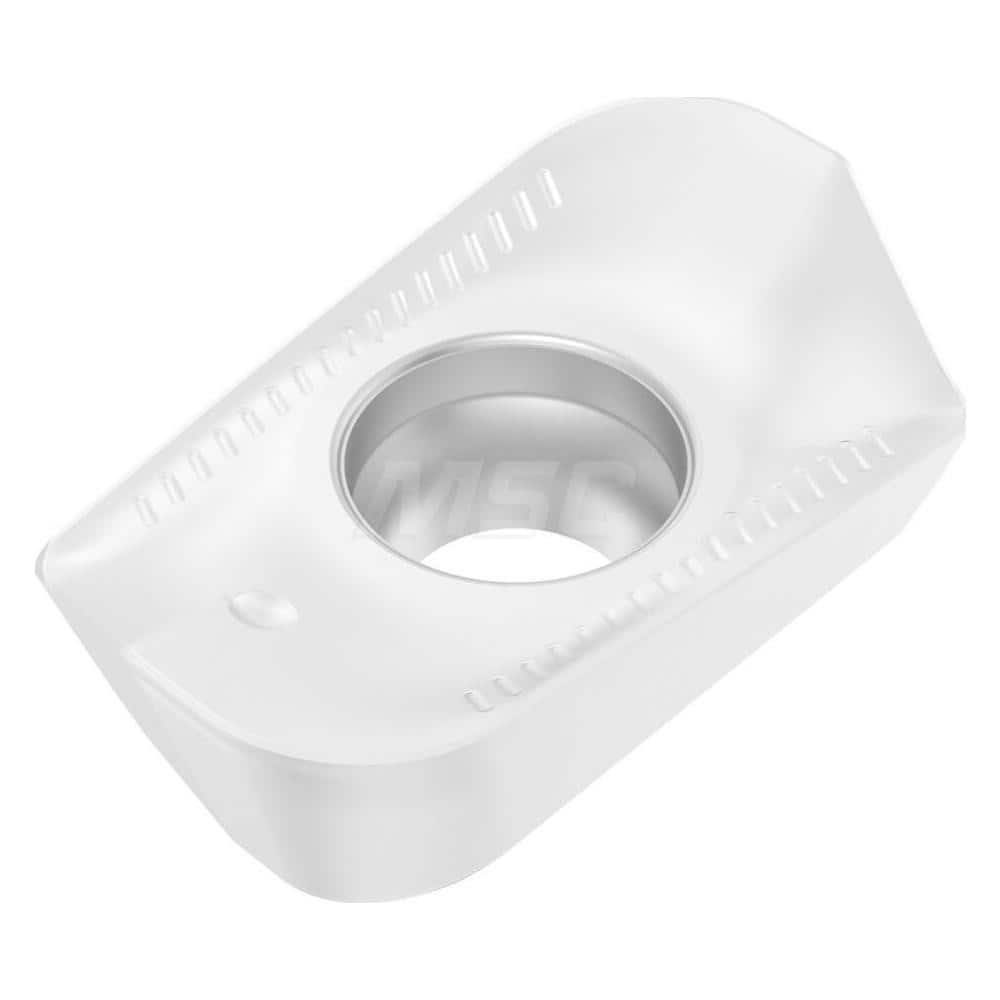

Milling Insert: XOMX160540TR-ME11, MS2050, Solid Carbide N/A Finish,
Item #: 20629416
Brand: Seco
Model #: 10067118
Product Specifications
| Insert Style | XOMX |
| Insert Size Code | 160540 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | MS2050 |
| Inscribed Circle (Decimal Inch) | 0.4020 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Insert Hand | Right Hand |
| Relief Angle | 15.20 |
| Series | R217; R220.69-16 |
| Coating Process | PVD |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5980 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | XOMX160540TR-ME11 |
| Iso Code | XOMX160540TR-ME11 |
| Chip Breaker | ME11 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2370 |
