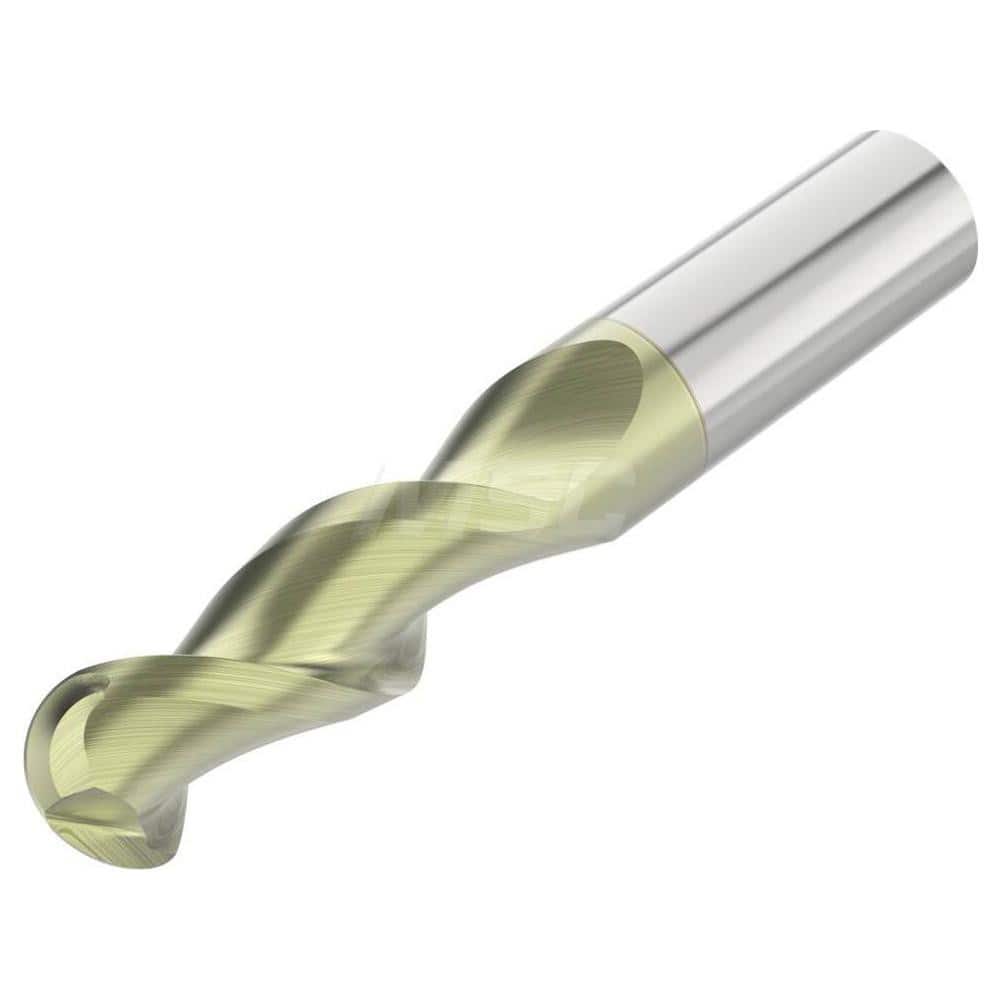

Ball End Mill: 0.5″ Dia, 1.25″ LOC, 2 Flute, Solid Carbide 3″ OAL, 1/2″ Shank Dia, 45 ° Helix, ANF Coated, Single End, Series AB245
Item #: 20629119
Brand: Niagara Cutter
Model #: 10022738
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Ball End |
| Extended Reach | No |
| Helix Angle | 45 |
| Undercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Length Type | Standard |
| Helix Style | High |
| Shank Diameter (Inch) | 1/2 |
| Nose Radius (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Mill Diameter Tolerance | +0.000 to -0.002 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | AB245 |
| Flute Type | Helical |
| TIR Maximum (Decimal Inch) | 0.0005 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Corner Radius (Decimal Inch) | 0.2500 |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | ANF |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Manufacturers Catalog Number | AB245-0.500-D3-B.0-Z2 |
