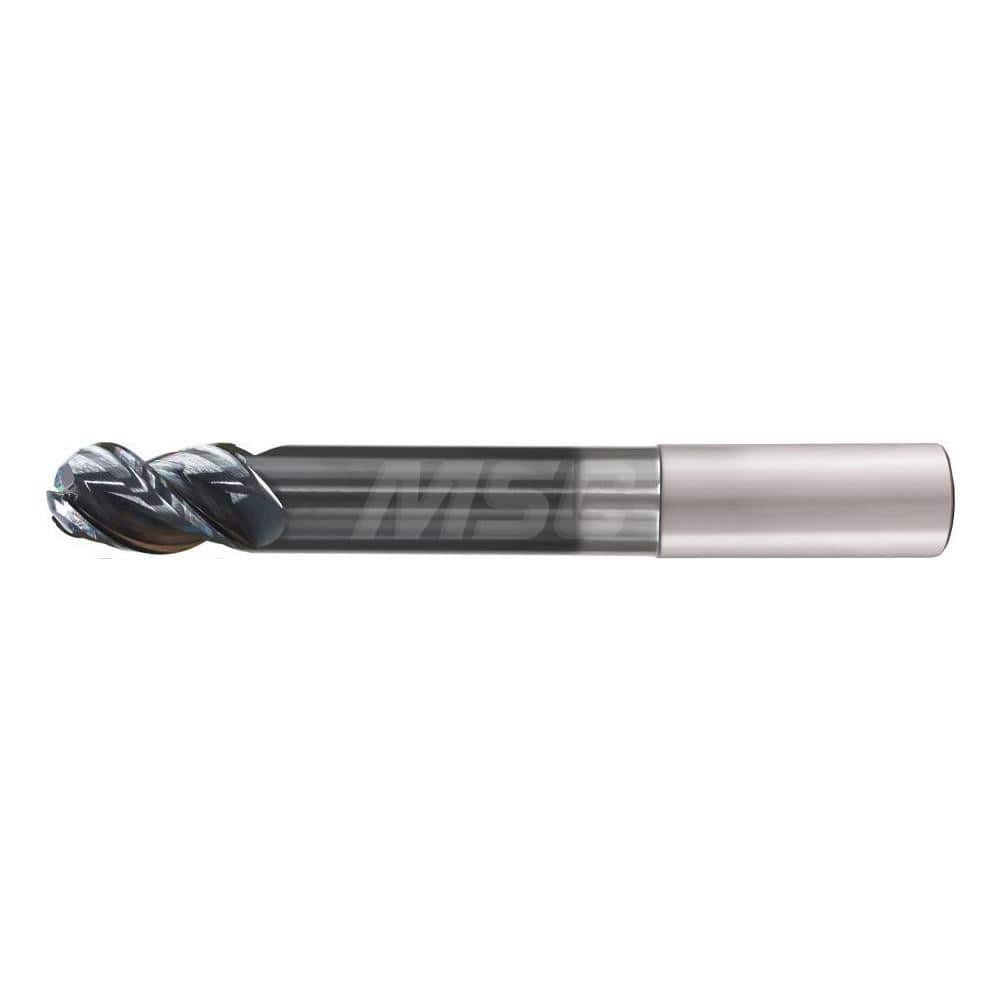

Ball End Mill: 0.3125″ Dia, 4 Flute, Solid Carbide 4″ OAL, 5/16″ Shank Dia, 38 ° Helix, TiAlCN Coated, Single End, Series Flash Solid
Item #: 20560207
Brand: Iscar
Model #: 3398274
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Length of Cut (Inch) | 1-5/8 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| Helix Angle | 38 |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 4 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Flash Solid |
| Flute Type | Spiral |
| Centercutting | Yes |
| Corner Radius (Decimal Inch) | 5/32 |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlCN |
| Manufacturers Catalog Number | EBI-4 312-1.62CVF4 |
