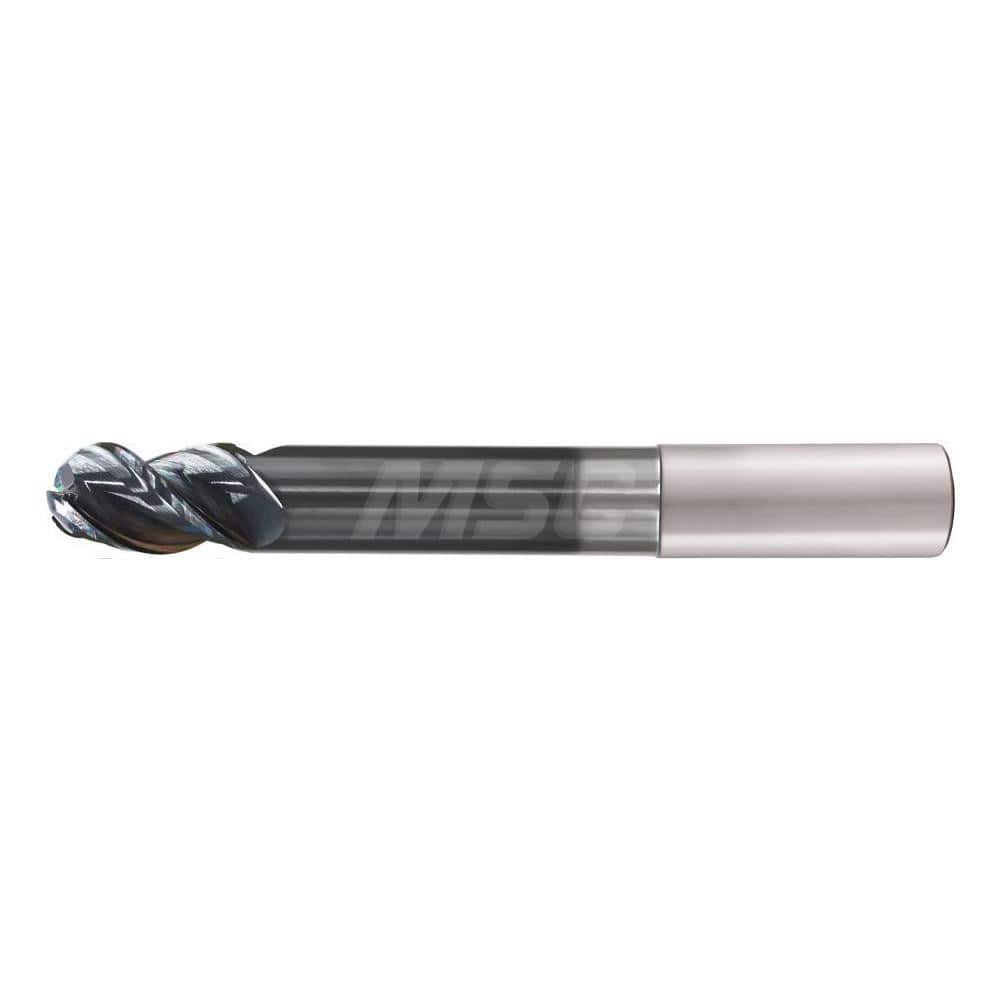

Ball End Mill: 0.375″ Dia, 1″ LOC, 5 Flute, Solid Carbide 2-1/2″ OAL, 3/8″ Shank Dia, 38 ° Helix, TiAlCN Coated, Single End, Series Flash Solid
Item #: 20558680
Brand: Iscar
Model #: 3398498
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 1 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| Helix Angle | 38 |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Flash Solid |
| Flute Type | Spiral |
| Centercutting | Yes |
| Corner Radius (Decimal Inch) | 3/16 |
| Single Or Double End | Single |
| Number Of Flutes | 5 |
| Coating/Finish | TiAlCN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Manufacturers Catalog Number | EBI-5 .375-1.CVF2.5 |
