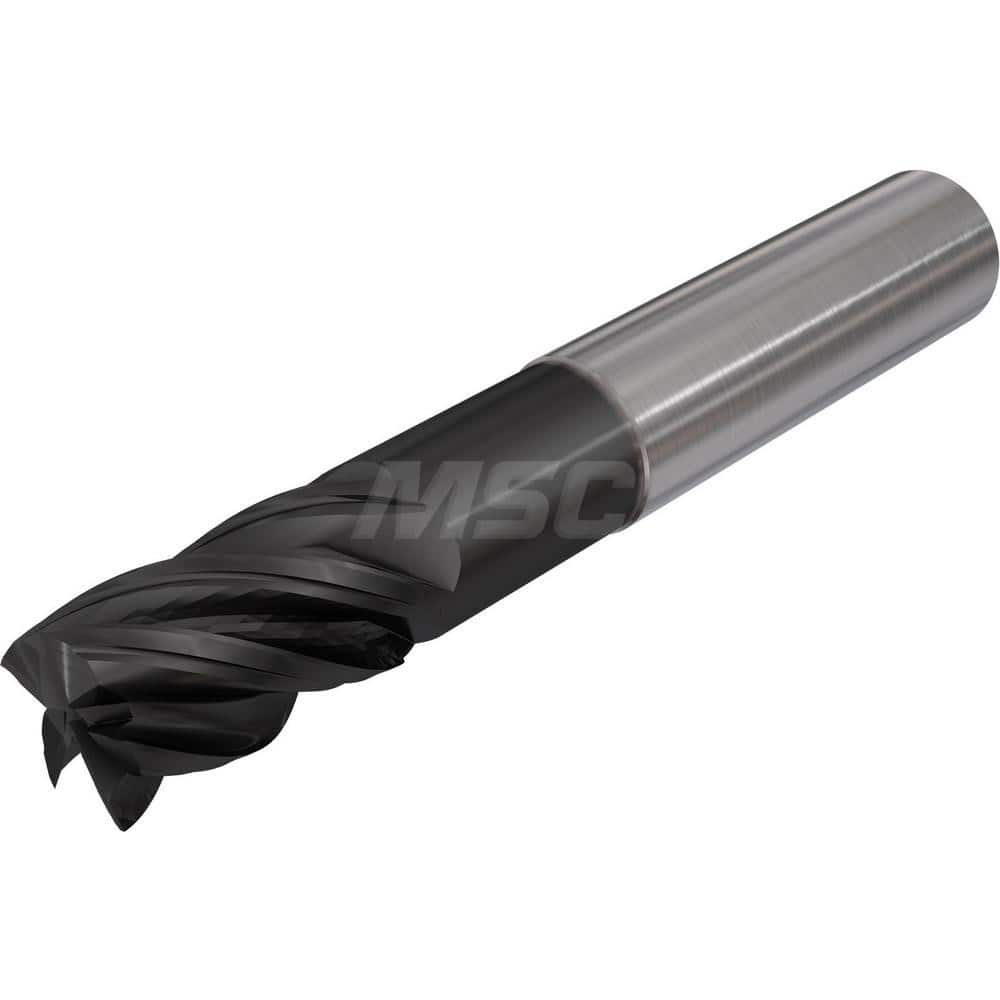

Corner Radius End Mill: 1″ Dia, 1-1/2″ LOC, 5 Flutes, Solid Carbide 5″ OAL, 1″ Shank Dia, 38 ° Helix, TiAlCN Coated, Square End, Centercutting, Series Flash Solid
Item #: 20555660
Brand: Iscar
Model #: 3398639
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (Inch) | 1-1/2 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Square |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Submicron |
| Single Or Double End | Single |
| Manufacturers Catalog Number | ECI-5 1.-1.5/3.CVF5. |
| Coating/Finish | TiAlCN |
