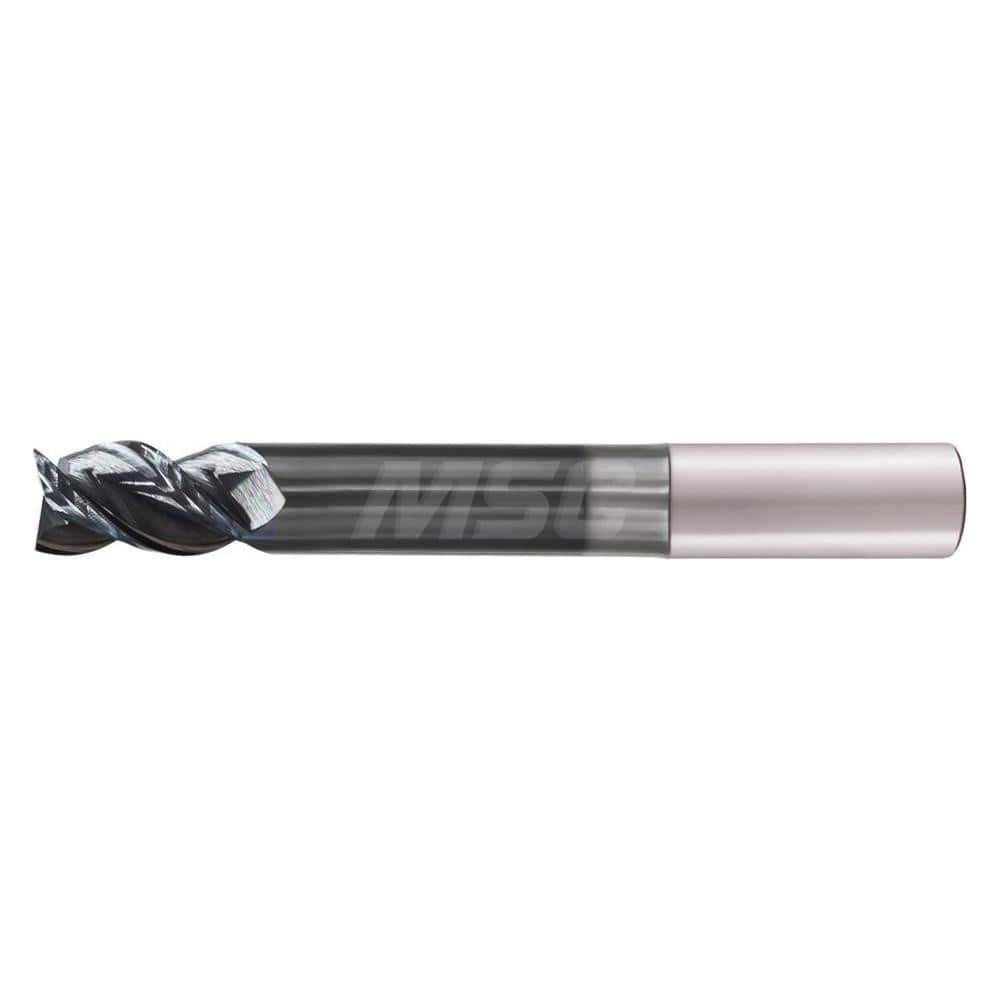

Corner Radius End Mill: 3/4″ Dia, 2-1/4″ LOC, 1/8″ Radius, 3 Flutes, Solid Carbide 5″ OAL, 3/4″ Shank Dia, 45 ° Helix, DLC Coated, Corner Radius End, Centercutting, Series Flash Solid
Item #: 20554010
Brand: Iscar
Model #: 3399238
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 2-1/4 |
| Corner Radius (Inch) | 1/8 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 45 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Submicron |
| Single Or Double End | Single |
| Manufacturers Catalog Number | ECAI-B3 .75-2.3CR125-5EC |
| Coating/Finish | DLC |
