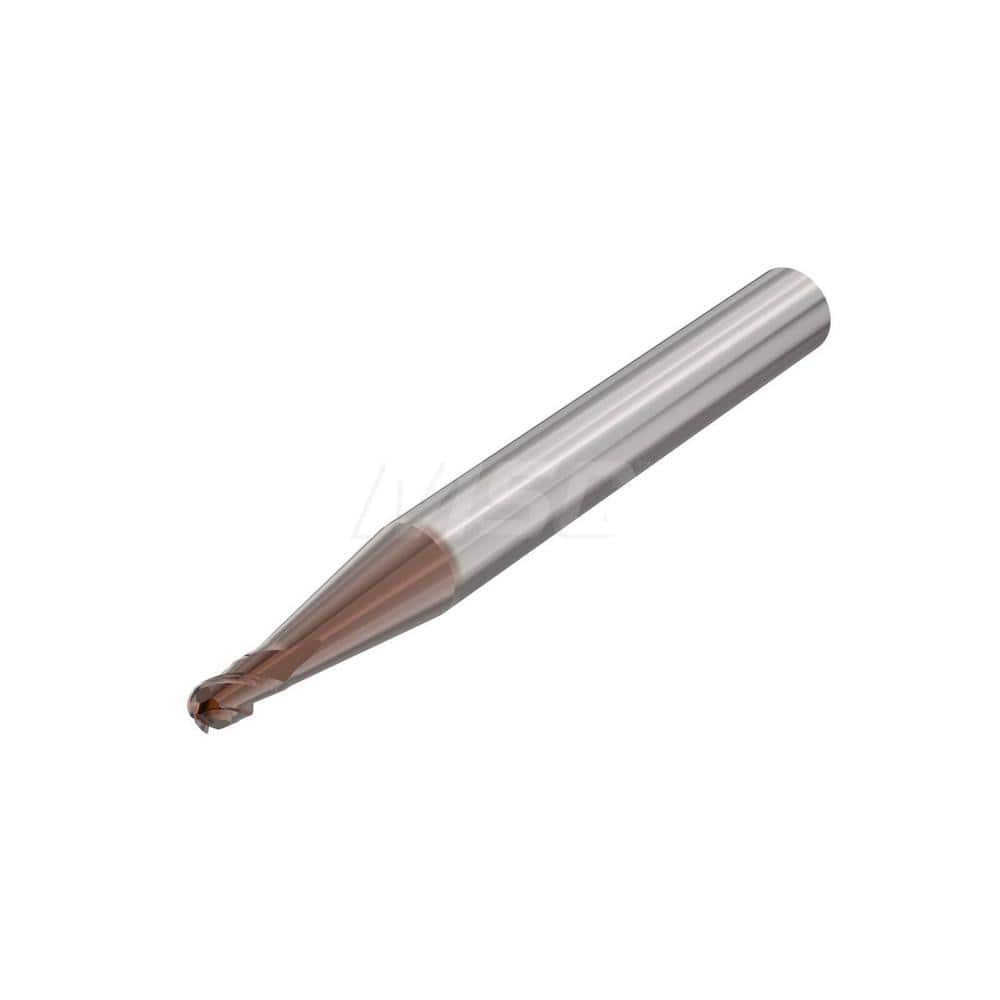

Ball End Mill: 0.1378″ Dia, 3 Flute, Solid Carbide 65 mm OAL, 6 mm Shank Dia, 40 ° Helix, HXT Coated, Single End, Series JHB720
Item #: 20523171
Brand: Seco
Model #: 10072325
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1378 |
| Mill Diameter (mm) | 3.50 |
| Length of Cut (mm) | 5.00 |
| End Mill Material | Solid Carbide |
| End Type | Ball |
| Extended Reach | Yes |
| Helix Angle | 40 |
| Undercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Length Type | Short |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (Decimal Inch) | 3.2000 |
| Neck Diameter (mm) | 3.20 |
| Neck Length (Inch) | 2 |
| Neck Length (Decimal Inch) | 2.0000 |
| Reach Length (mm) | 7.00 |
| Overall Length (mm) | 65.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | JHB720 |
| Flute Type | Helical |
| Centercutting | No |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | HXT |
| Manufacturers Catalog Number | JHB720035G2B.0Z3 |
