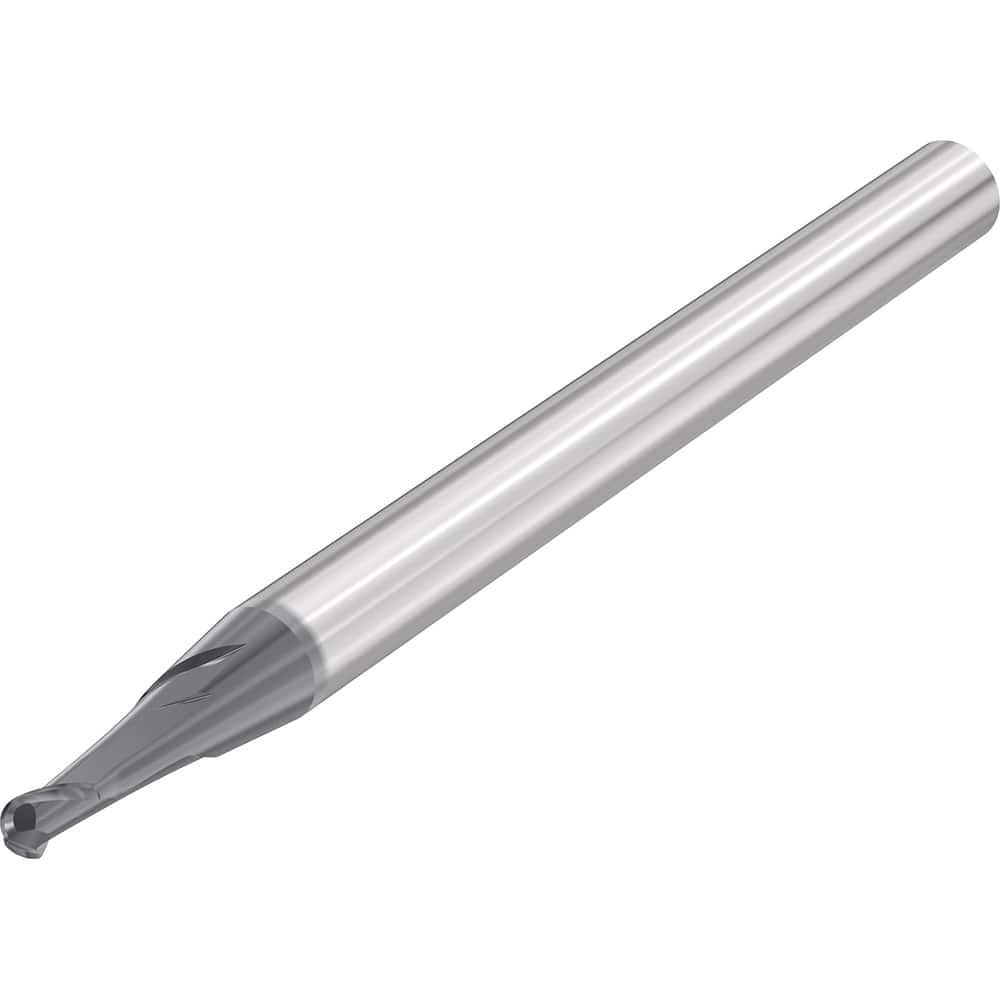

Ball End Mill: 0.1575″ Dia, 2 Flute, Solid Carbide 80 mm OAL, 6 mm Shank Dia, 30 ° Helix, SIRON-A Coated, Single End, Series JHB970
Item #: 20523072
Brand: Seco
Model #: 10072076
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Length of Cut (mm) | 6.00 |
| End Mill Material | Solid Carbide |
| End Type | Ball |
| Extended Reach | Yes |
| Helix Angle | 30 |
| Undercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Length Type | Standard |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (Decimal Inch) | 3.7000 |
| Neck Diameter (mm) | 3.70 |
| Neck Length (Inch) | 2 |
| Neck Length (Decimal Inch) | 2.0000 |
| Reach Length (mm) | 8.00 |
| Overall Length (mm) | 80.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | JHB970 |
| Flute Type | Helical |
| Centercutting | No |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | SIRON-A |
| Manufacturers Catalog Number | JHB970040G3B.0Z2 |
