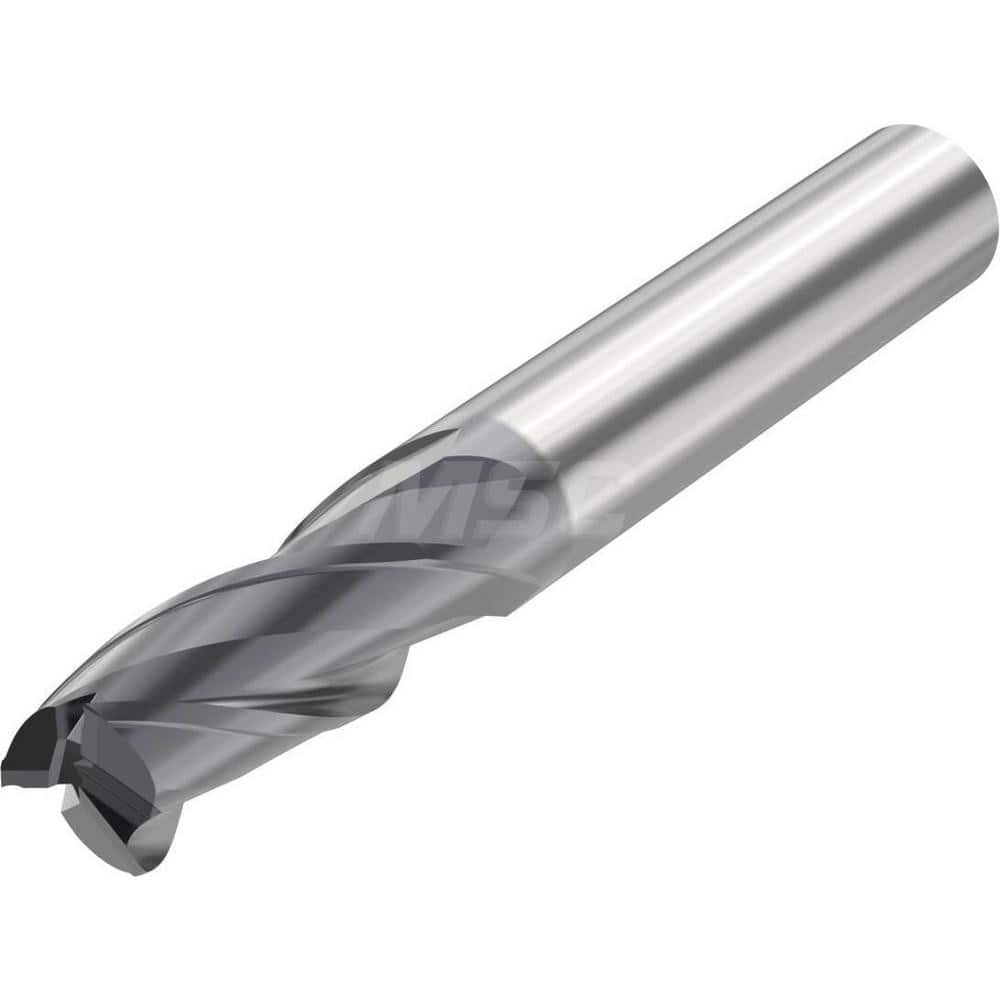

Corner Radius End Mill: 0.1575″ Dia, 3 Flutes, Solid Carbide 35 ° Helix, SIRON-A Coated, Corner Chamfer End, Series JSE513
Item #: 20521647
Brand: Seco
Model #: 10052999
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Chamfer Width (mm) | 0.040 |
| Mill Diameter (mm) | 4.00 |
| Chamfer Angle | 45.000 |
| Length of Cut (mm) | 8.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Chamfer |
| Length Type | Short |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (mm) | 4.0000 |
| Overall Length (mm) | 50.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Manufacturers Catalog Number | JSE513040D2C.0Z3 |
| Coating/Finish | SIRON-A |
