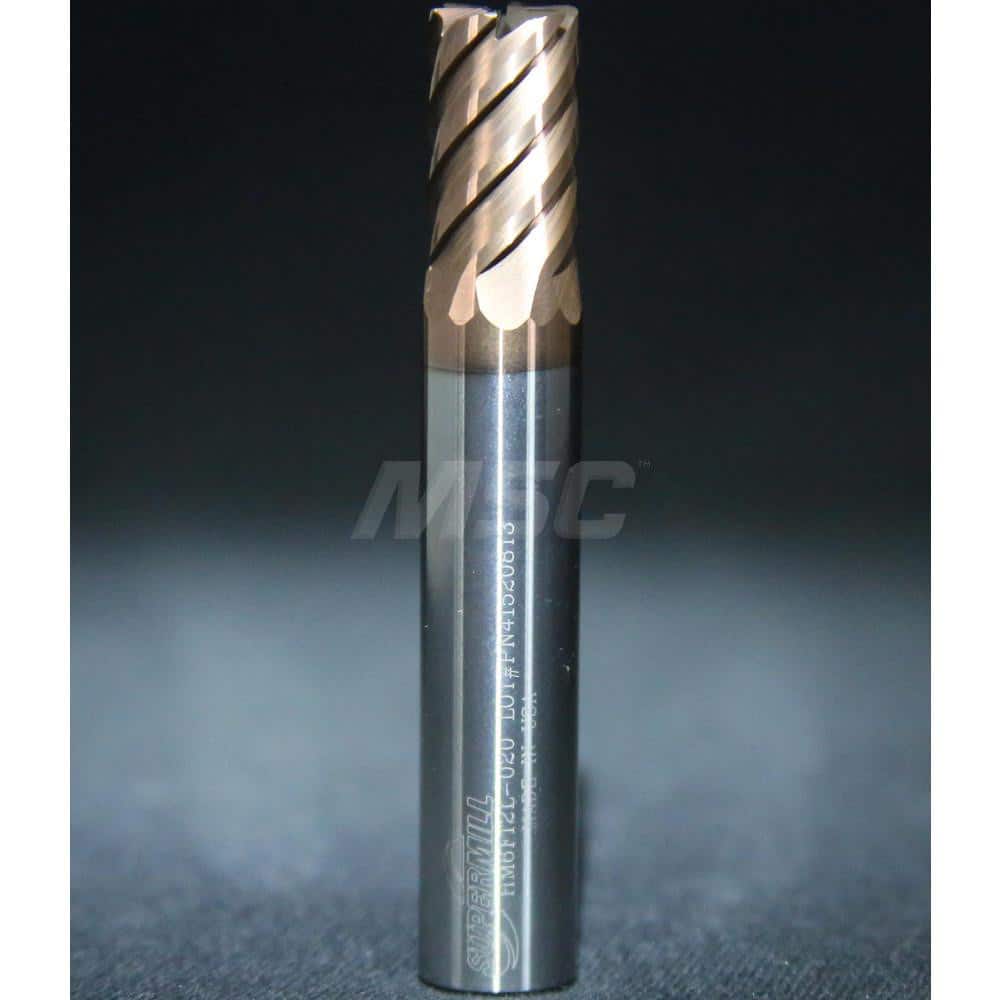

Square End Mill: 3/4'' Dia, 1-3/4'' LOC, 3/4'' Shank Dia, 4'' OAL, 6 Flutes, Solid Carbide Single End, TXC Finish, Spiral Flute, 45 ° Helix, RH Cut, RH Flute, Series HM6F
Item #: 20511663
Brand: Supermill
Model #: HM6F750L
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 1-3/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | TXC |
| Overall Length (Inch) | 4 |
| Helix Angle | 45 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 1.7500 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Series | HM6F |
