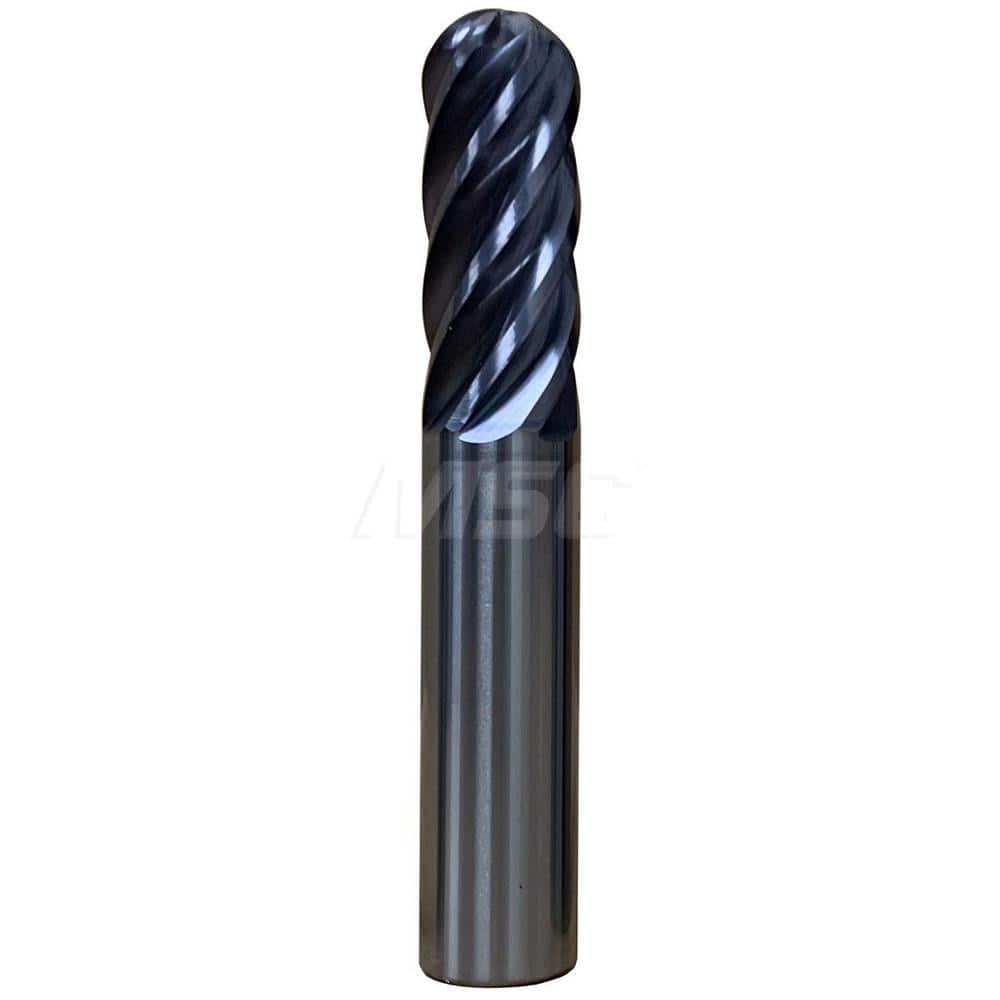

Ball End Mill: 0.4724″ Dia, 6 Flute, Solid Carbide 83 mm OAL, 12 mm Shank Dia, 35 to 45 ° Helix, Ti-NAMITE-X Coated, Single End, Series 51B
Item #: 20468583
Brand: SGS
Model #: 45210
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Length of Cut (mm) | 26.00 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| Helix Angle | 35 to 45 |
| Undercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Helix Style | High |
| Shank Diameter (mm) | 12.00 |
| Overall Length (mm) | 83.00 |
| Mill Diameter Tolerance | +0.000 to -0.05 |
| Maximum Helix Angle | 45.00 |
| Minimum Helix Angle | 35.00 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 51B |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 6 |
| Coating/Finish | Ti-NAMITE-X |
