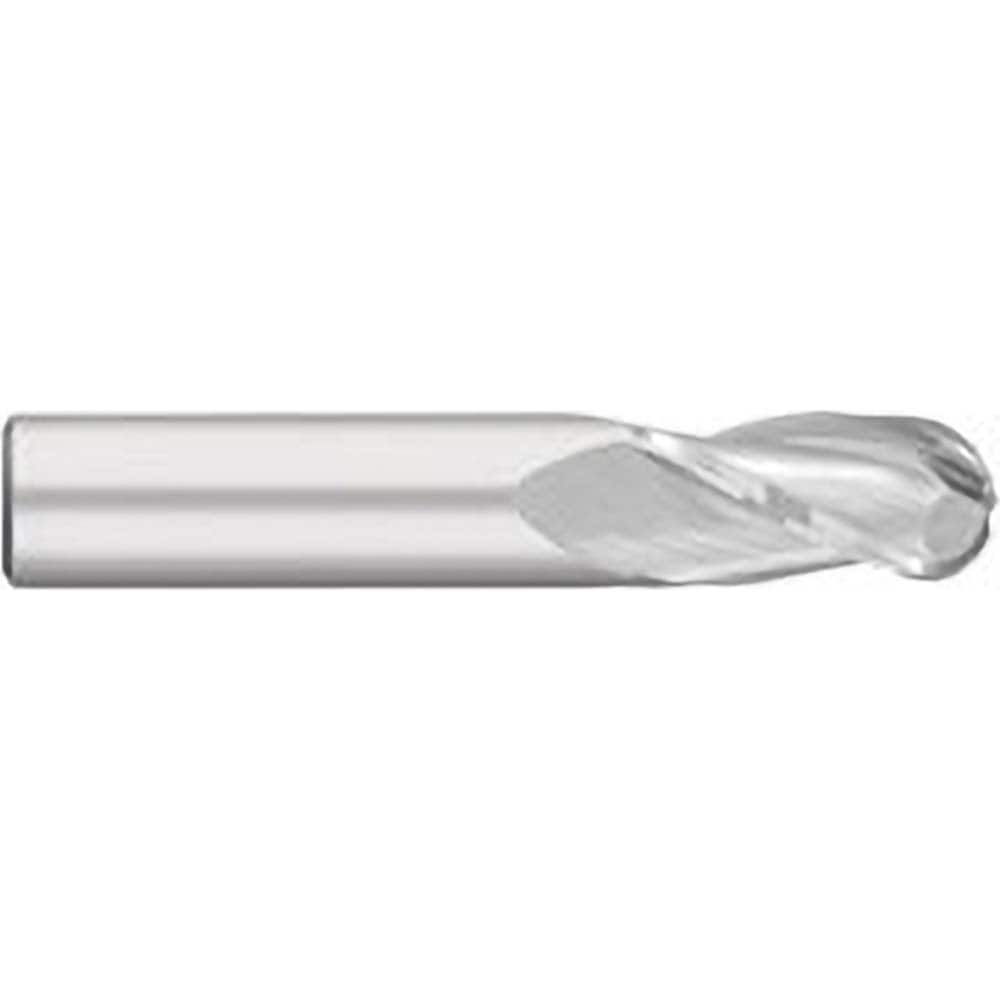

Titan USA - Ball End Mills; Mill Diameter (Decimal Inch): 0.1719 ; Number of Flutes: 3 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide ; Overall Length (Inch): 2
Item #: 20349221
Brand: Titan USA
Model #: TC12911
Product Specifications
Ball End Mills; Mill Diameter (Decimal Inch): 0.1719 ; Number of Flutes: 3 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide ; Overall Length (Inch): 2
| Mill Diameter (Decimal Inch) | 0.1719 |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.00000 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
