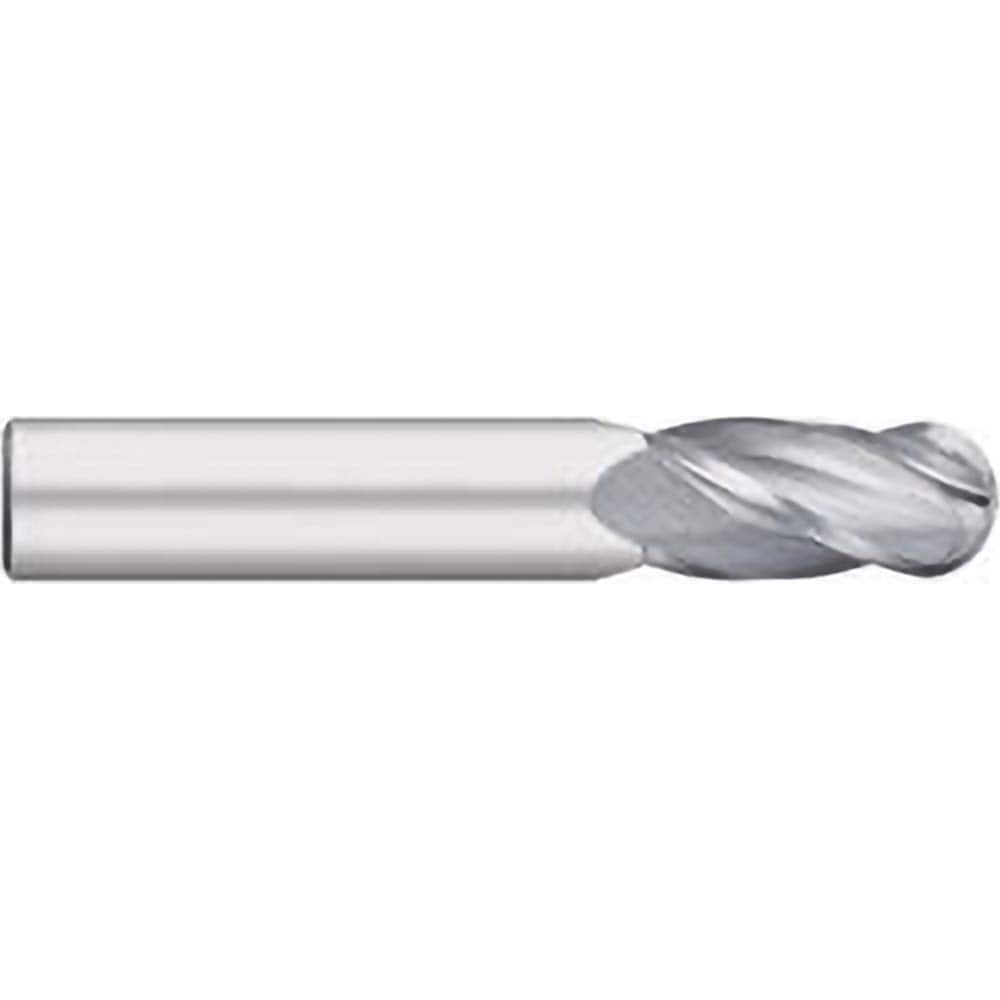

Titan USA - Ball End Mills; Mill Diameter (mm): 8.00 ; Mill Diameter (Decimal Inch): 0.3150 ; Number of Flutes: 4 ; Length of Cut (mm): 20.0000 ; Length of Cut (Decimal Inch): 0.7874 ; Material: Solid Carbide
Item #: 20348488
Brand: Titan USA
Model #: TC12729
Product Specifications
Ball End Mills; Mill Diameter (mm): 8.00 ; Mill Diameter (Decimal Inch): 0.3150 ; Number of Flutes: 4 ; Length of Cut (mm): 20.0000 ; Length of Cut (Decimal Inch): 0.7874 ; Material: Solid Carbide
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 20.0000 |
| Length of Cut (Decimal Inch) | 0.7874 |
| Material | Solid Carbide |
| Overall Length (mm) | 63.0000 |
| Shank Diameter (mm) | 8.0000 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
