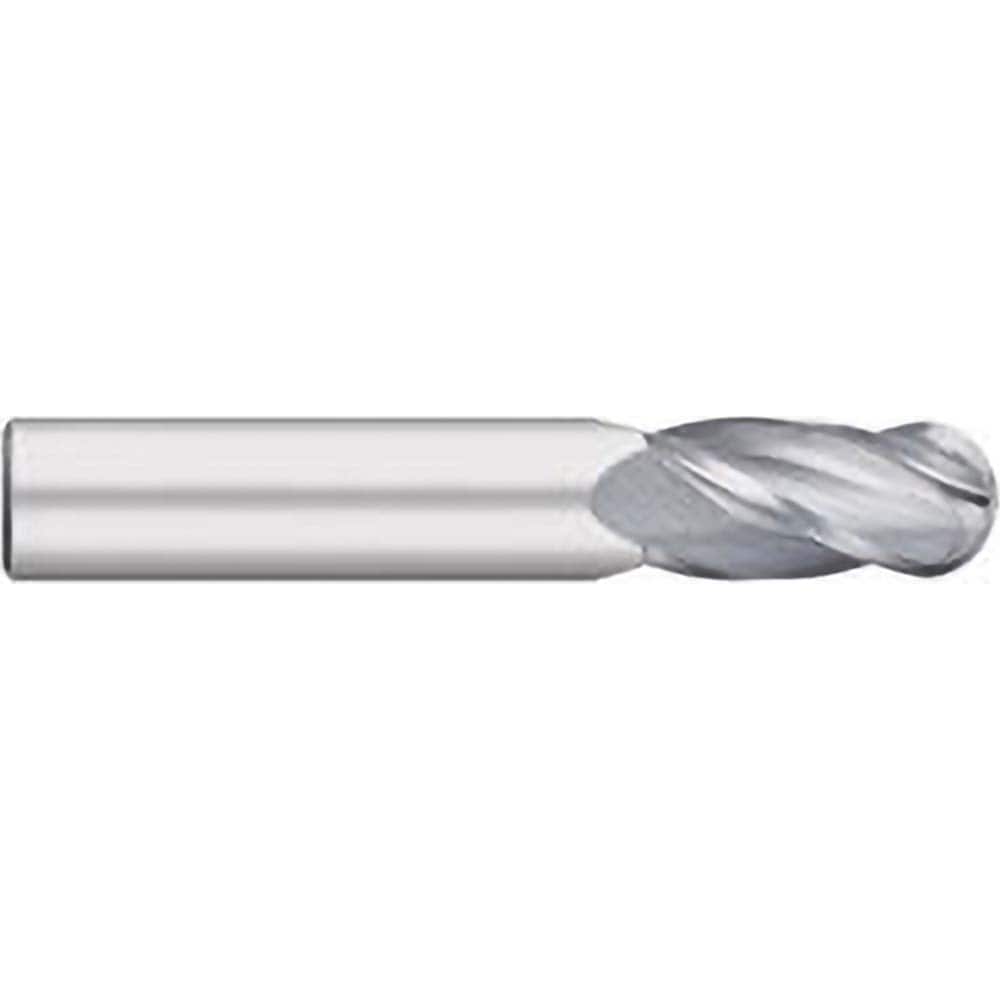

Titan USA - Ball End Mills; Mill Diameter (mm): 14.00 ; Mill Diameter (Decimal Inch): 0.5512 ; Number of Flutes: 4 ; Length of Cut (mm): 32.0000 ; Length of Cut (Decimal Inch): 1.2598 ; Material: Solid Carbide
Item #: 20348298
Brand: Titan USA
Model #: TC12739
Product Specifications
Ball End Mills; Mill Diameter (mm): 14.00 ; Mill Diameter (Decimal Inch): 0.5512 ; Number of Flutes: 4 ; Length of Cut (mm): 32.0000 ; Length of Cut (Decimal Inch): 1.2598 ; Material: Solid Carbide
| Mill Diameter (mm) | 14.00 |
| Mill Diameter (Decimal Inch) | 0.5512 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 32.0000 |
| Length of Cut (Decimal Inch) | 1.2598 |
| Material | Solid Carbide |
| Overall Length (mm) | 89.0000 |
| Shank Diameter (mm) | 14.0000 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
