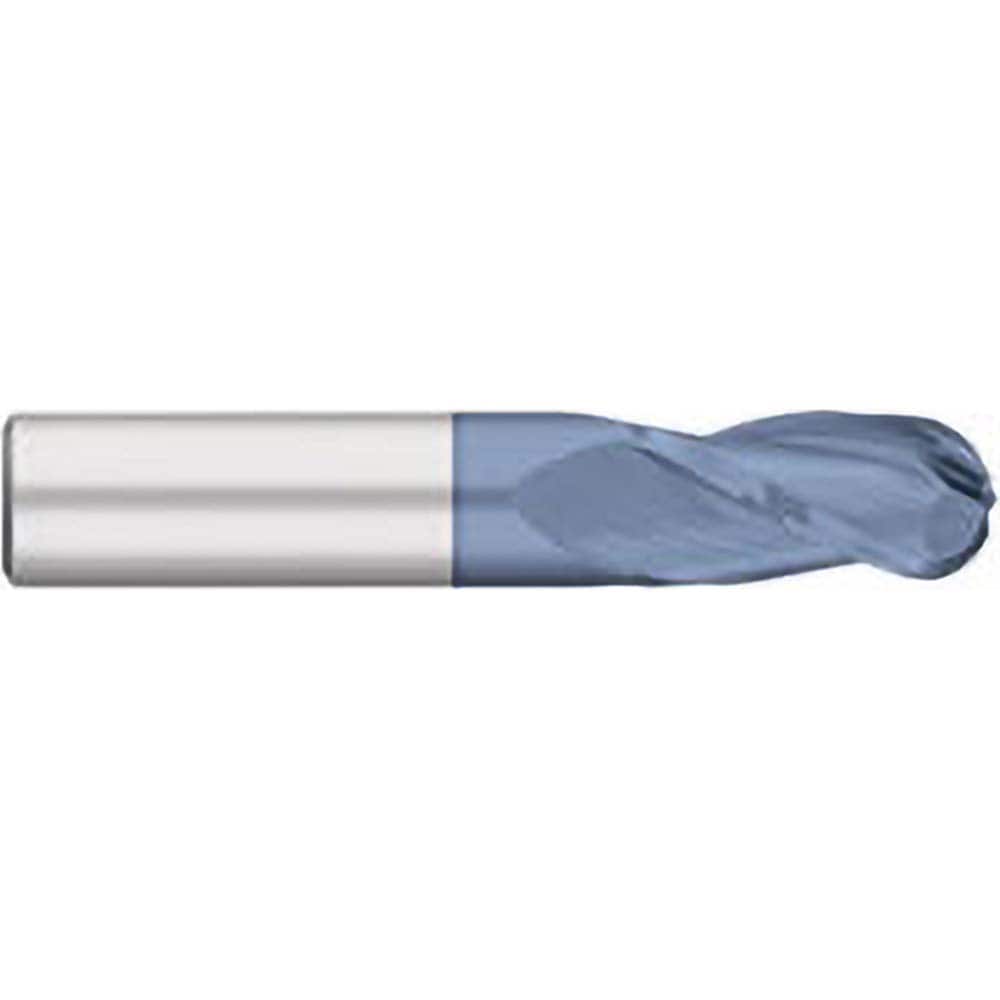

Ball End Mill: 0.5625″ Dia, 1.25″ LOC, 3 Flute, Solid Carbide 3-1/2″ OAL, 9/16″ Shank Dia, 30 ° Helix, AlTiN Coated, Single End
Item #: 20348033
Brand: Titan USA
Model #: TC13236
Product Specifications
| Mill Diameter (Inch) | 9/16 |
| Mill Diameter (Decimal Inch) | 0.5625 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 9/16 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Upcut |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
