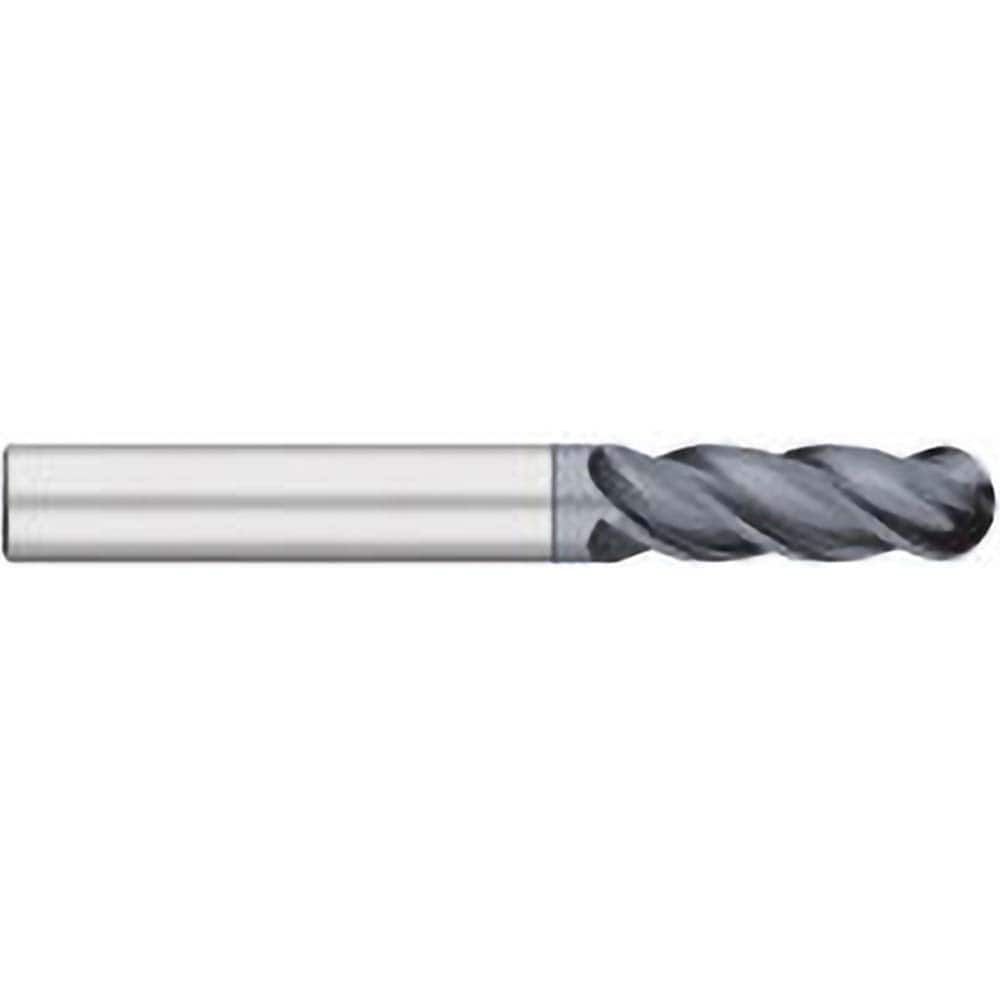

Ball End Mill: 1″ Dia, 2.25″ LOC, 4 Flute, Solid Carbide 5″ OAL, 1″ Shank Dia, 38 ° Helix, AlCrO-MAX Coated, Single End
Item #: 20345831
Brand: Titan USA
Model #: TC25616
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 2-1/4 |
| End Mill Material | Solid Carbide |
| Helix Angle | 38 |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 1.5000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Upcut |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlCrO-MAX |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
