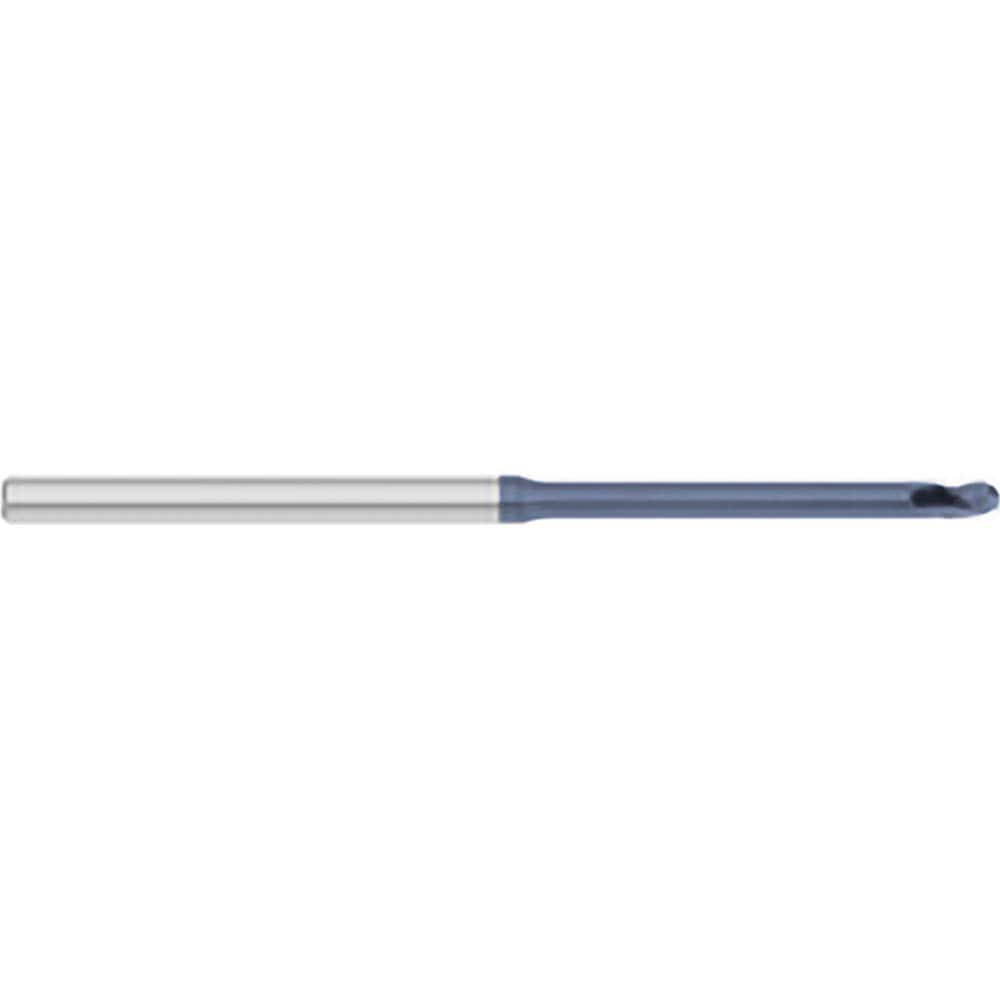

Titan USA - Ball End Mills; Mill Diameter (Decimal Inch): 0.0500 ; Number of Flutes: 3 ; Length of Cut (mm): 1.9000 ; Length of Cut (Decimal Inch): 0.0750 ; Material: Solid Carbide ; Overall Length (Inch): 2-1/2
Item #: 20342044
Brand: Titan USA
Model #: TC55821
Product Specifications
Ball End Mills; Mill Diameter (Decimal Inch): 0.0500 ; Number of Flutes: 3 ; Length of Cut (mm): 1.9000 ; Length of Cut (Decimal Inch): 0.0750 ; Material: Solid Carbide ; Overall Length (Inch): 2-1/2
| Mill Diameter (Decimal Inch) | 0.0500 |
| Number of Flutes | 3 |
| Length of Cut (mm) | 1.9000 |
| Length of Cut (Decimal Inch) | 0.0750 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | AlTiN |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Flute Type | Upcut |
| Reach Length (Decimal Inch) | 0.1500 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
