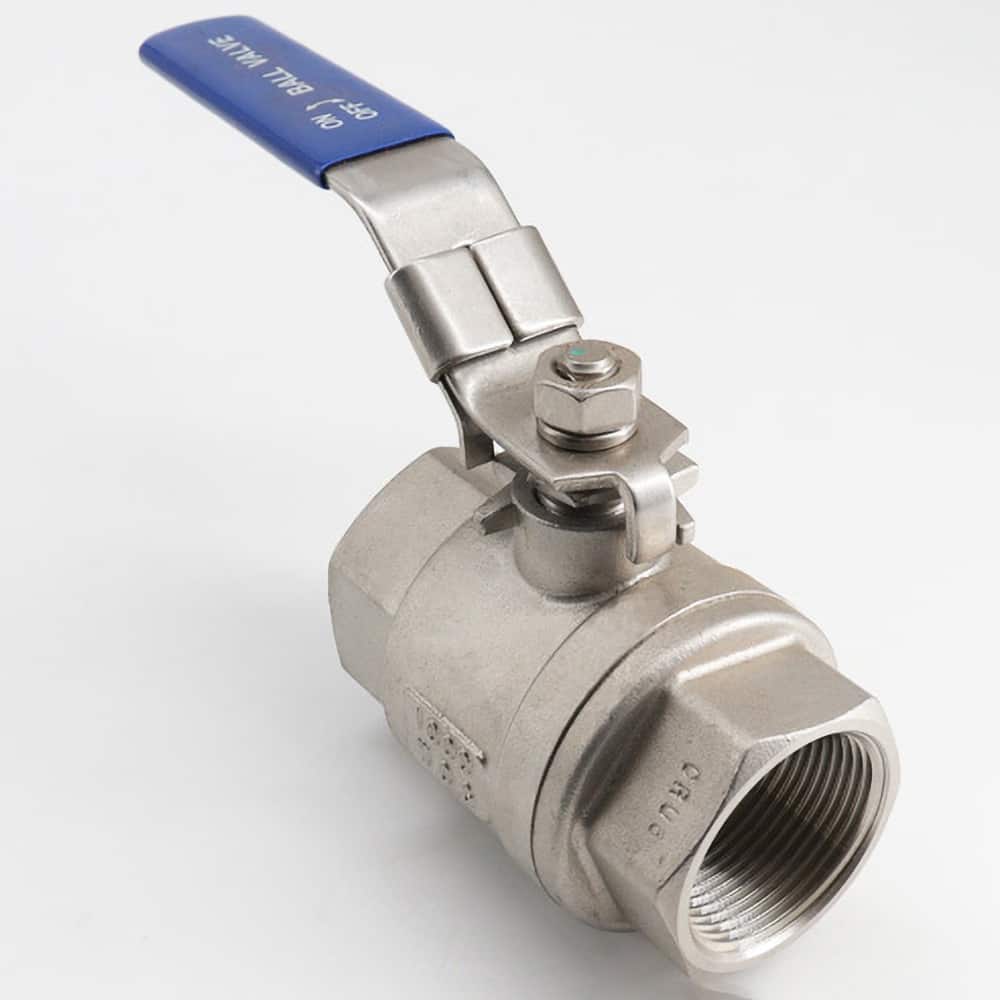

Guardian Worldwide - Ball Valves; Type: Ball Valve ; Pipe Size (Inch): 2-1/2 ; Material: Stainless Steel ; Style: Inline 2-Way ; End Connections: FNPT x FNPT ; Port Type: Full
Item #: 20208138
Brand: Guardian Worldwide
Model #: 06Q201N04212
Product Specifications
Ball Valves; Type: Ball Valve ; Pipe Size (Inch): 2-1/2 ; Material: Stainless Steel ; Style: Inline 2-Way ; End Connections: FNPT x FNPT ; Port Type: Full
| Type | Ball Valve |
| Pipe Size (Inch) | 2-1/2 |
| Material | Stainless Steel |
| Style | Inline 2-Way |
| End Connections | FNPT x FNPT |
| Port Type | Full |
| Handle Type | Locking Lever |
| Maximum Work Temperature (F) | 300.000 |
| Minimum Work Temperature (F) | -50.000 |
| Seal Material | PTFE |
| Material Grade | 316 |
| Steam Pressure Rating (psi) | 1000 |
| Seat Material | PTFE |
| Special Item Information | Lost Wax Precision Casting; Blow-Out Proof Stem; Sanitary Design |
| ForUseWith | Air; Fuel; Oil; Wastewater; Water |
