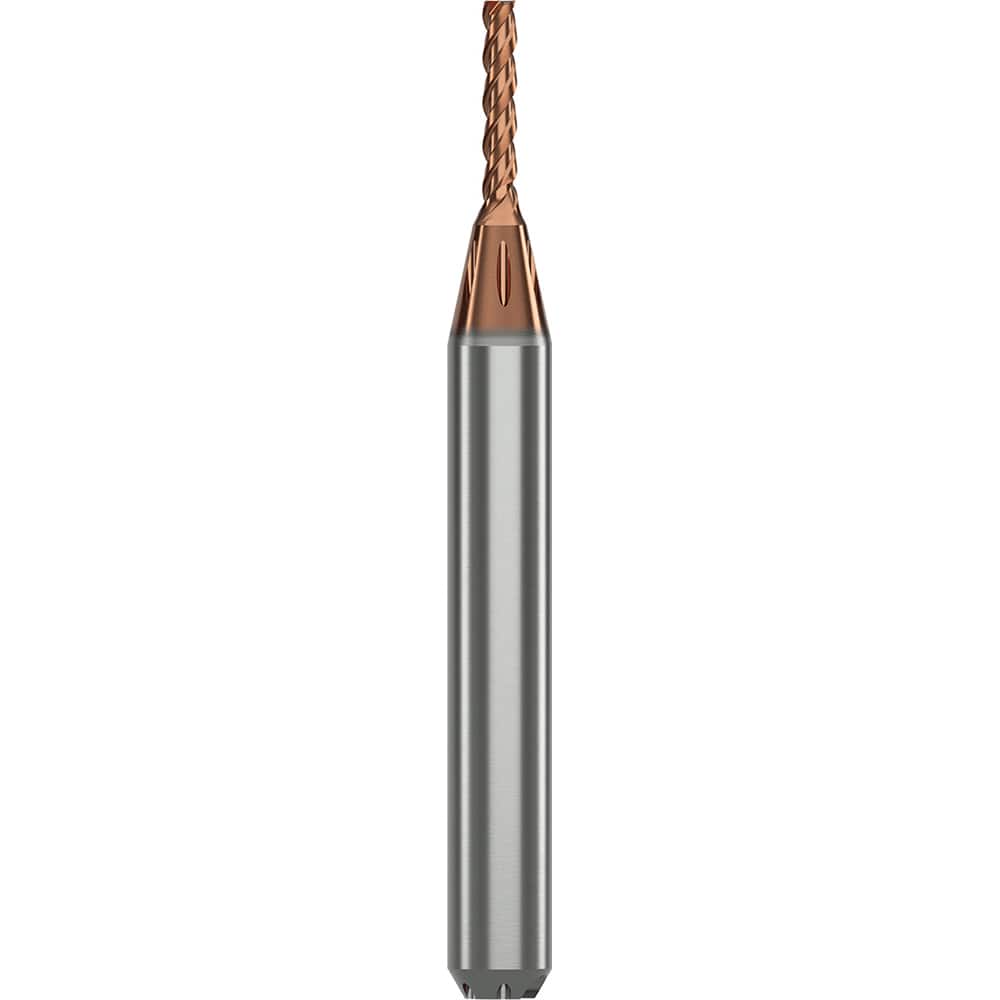

Guhring - Micro Diver 1.5mm Diam 3-Flute Carbide 0.03mm Corner Chamfer End Mill
Item #: 20184958
Brand: Guhring
Model #: 9068090015000
Product Specifications
| Mill Diameter (mm) | 1.50 |
| Mill Diameter (Decimal Inch) | 0.0590 |
| End Type | Corner Chamfer |
| Chamfer Width (mm) | 0.030 |
| Number of Flutes | 3 |
| Material | Carbide |
| Finish/Coating | Durox |
| Length of Cut (mm) | 7.5000 |
| Shank Diameter (mm) | 4.0000 |
| Overall Length (mm) | 50.0000 |
| Overall Length (Inch) | 1.9600 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 40.00 |
| Variable Index | No |
| Variable Helix | No |
| Reach Length (mm) | 13.00 |
| Chamfer Angle | 45.000 |
| Material Grade | Ultra Fine Grain |
| Single or Double End | Single |
| Length Type | XL |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Shank Type | Cylindrical Shank |
| Series/List | 6809 |
