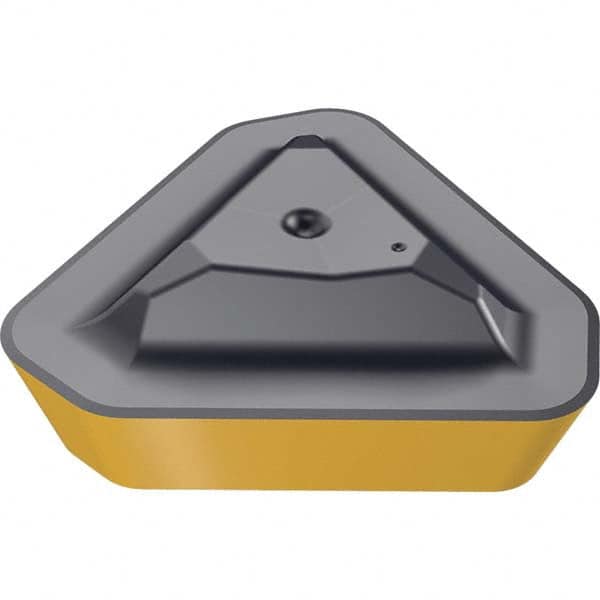

Iscar - FFT3TXMT020105T IC830 Carbide Milling Insert
Item #: 20089850
Brand: Iscar
Model #: 3326800
Product Specifications
| Insert Style | TXMT |
| Insert Size | 020105 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 3.66 |
| Length (Decimal Inch) | 0.1440 |
| Inscribed Circle (mm) | 2.00 |
| Inscribed Circle (Decimal Inch) | 0.0787 |
| Thickness (mm) | 1.10 |
| Thickness (Decimal Inch) | 0.0433 |
| Corner Radius (Decimal Inch) | 0.0196 |
| Corner Radius (mm) | 0.50 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 0.45 |
| Maximum Depth of Cut (Decimal Inch) | 0.0177 |
| Cutter Series Compatibility | FFT3 |
