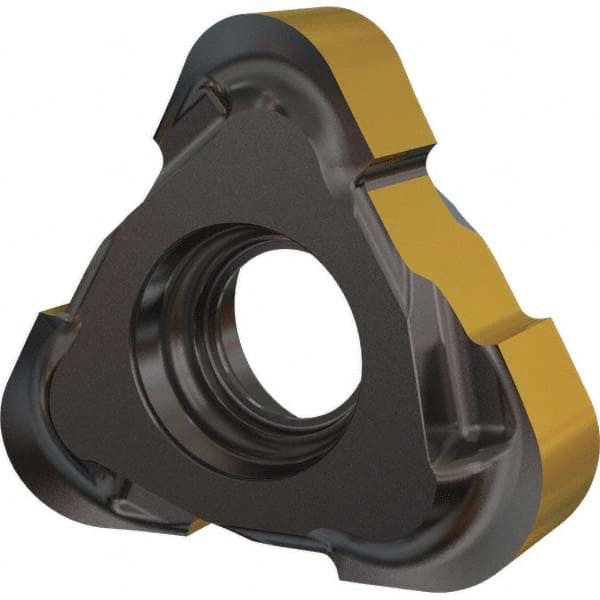

Iscar - TR6TNCU100415 IC882 Carbide Milling Insert
Item #: 20089819
Brand: Iscar
Model #: 3320840
Product Specifications
| Insert Style | TNCU |
| Insert Size | 100415 |
| Material | Carbide |
| Manufacturer's Grade | IC882 |
| Coating | TiAIN/TiN |
| Inscribed Circle (mm) | 7.30 |
| Inscribed Circle (Decimal Inch) | 0.2870 |
| Thickness (mm) | 4.20 |
| Thickness (Decimal Inch) | 0.1650 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 1.50 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Cutter Series Compatibility | TR6 |
