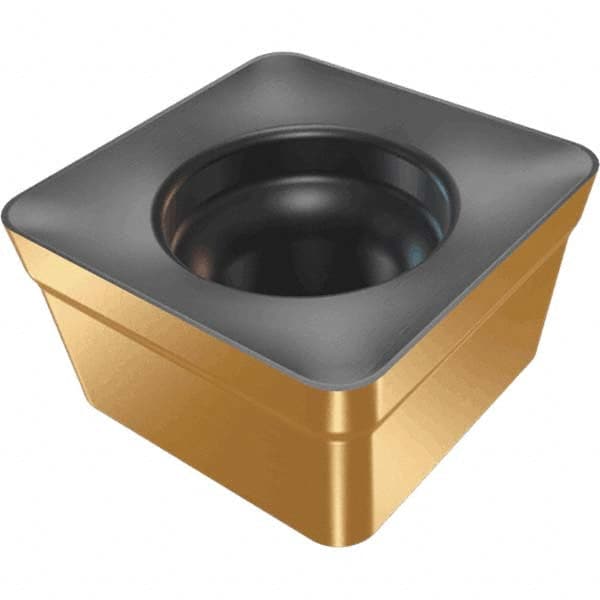

SOMT040204PNTR IC810 Carbide Milling Insert AlTiN/TiN Finish, 3.97mm Thick
Item #: 20089785
Brand: Iscar
Model #: 3340337
Product Specifications
| Insert Style | SOMT |
| Insert Size Code | 040204 |
| Insert Size | 040204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC810 |
| Inscribed Circle (Decimal Inch) | 0.1600 |
| Inscribed Circle (mm) | 4.07 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Series | HELI4MILL |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.1377 |
| Maximum Depth of Cut (mm) | 3.50 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | SOMT 040204 PNTR |
| Standards | ISO 13399 |
| Cutter Series Compatibility | SOMT |
| Chip Breaker | PNTR |
| Thickness (mm) | 3.97 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1562 |
