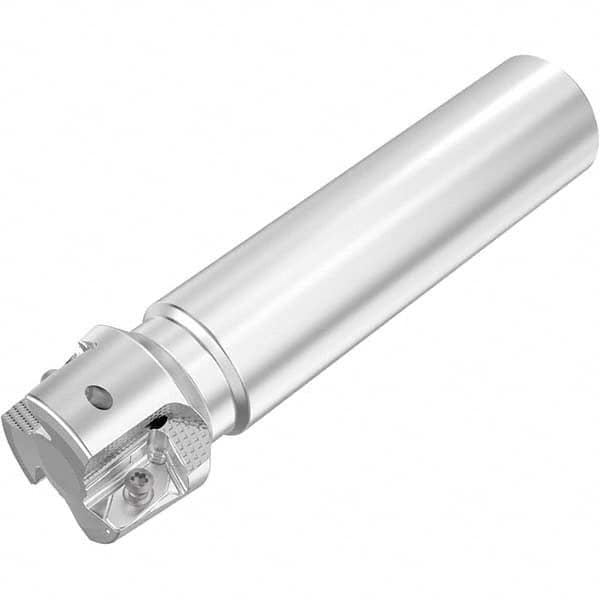

Seco - Indexable Square-Shoulder End Mills Cutting Diameter (Decimal Inch): 1.5000 Cutting Diameter (Inch): 1-1/2
Item #: 18992784
Brand: Seco
Model #: 03290231
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.5000 ; Cutting Diameter (Inch): 1-1/2 ; Shank Type: Straight ; Shank Diameter (Decimal Inch): 1.2500 ; Overall Length/Projection (mm): 195.00 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 195.00 |
| Lead Angle | 90 |
| Series | R217.64 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Indexable Square Shoulder End Mill |
| Cutter Style | R217.64 |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Inch) | 1-1/2 |
| Head Length (mm) | 195.00 |
| Weldon Flat | No |
| Insert Compatibility | ZOMX16 |
| Shank Length (mm) | 113.00 |
| Maximum RPM | 10000 |
| Toolholder Material | Steel |
