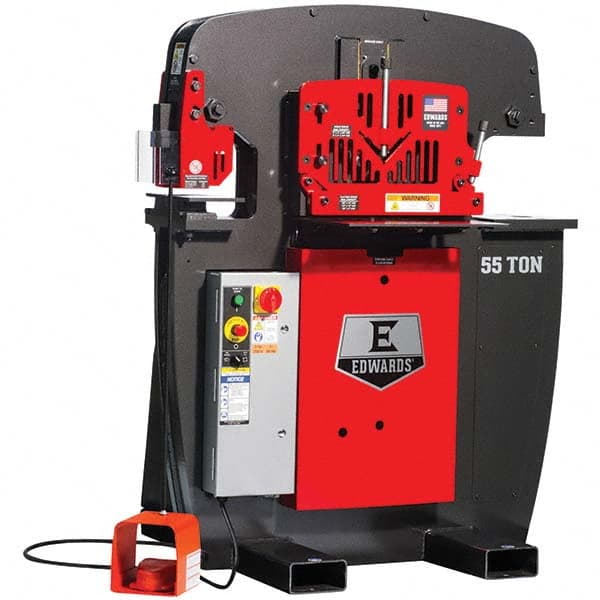

Edwards Manufacturing - Ironworkers Throat Depth (Inch): 7 Punching Pressure (Ton): 55
Item #: 56855083
Brand: Edwards Manufacturing
Model #: IW55-3P208
Product Specifications
Ironworkers; Throat Depth (Inch): 7 ; Punching Pressure (Ton): 55 ; Punching Capacity (Inch): 1-1/16 diam. in 5/8 Mild Steel ; Pipe Notching Capacity (Inch): 2-1/2 x 4 x 5/16 ; Square/Rectangular Notching Capacity (Inch): 7/8 ; 90 V. Notching Capacity (Inch): 3 x 3 x 3/8; 4 x 4 x 1/4
| Throat Depth (Inch) | 7 |
| Punching Pressure (Ton) | 55 |
| Punching Capacity (Inch) | 1-1/16 diam. in 5/8 Mild Steel |
| Pipe Notching Capacity (Inch) | 2-1/2 x 4 x 5/16 |
| Square/Rectangular Notching Capacity (Inch) | 7/8 |
| 90 V. Notching Capacity (Inch) | 3 x 3 x 3/8; 4 x 4 x 1/4 |
| Flat Bar Shear Length (Inch) | 35 |
| 45 Angle Shearing Capacity (Inch) | 3/8 x 14; 1/2 x 12; 3/4 x 4 |
| Phase | 3 |
| Voltage | 208 |
| Hydraulic Pressure (psi) | 2500.00 |
| Overall Width (Inch) | 44-3/8 |
| Overall Depth (Inch) | 36-1/8 |
| Overall Height (Inch) | 55-1/4 |
