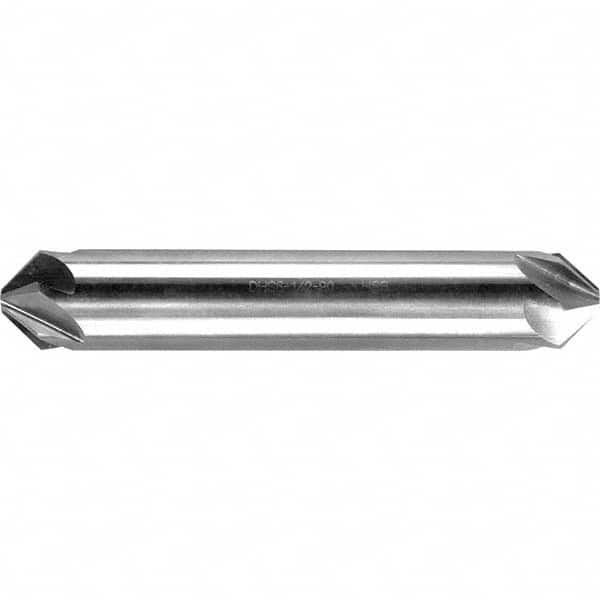

Melin Tool - 1/8" Head Diam, 1/8" Shank Diam, 6 Flute 100° High Speed Steel Countersink
Item #: 57814071
Brand: Melin Tool
Model #: 18291
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (Inch) | 1/8 |
| Head Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 6 |
| Included Angle | 100 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | Bright |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Maximum Cutting Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Countersink Application | Countersinking |
| End Type | Double |
| Shank Type | Straight |
| Shank Material | High Speed Steel |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| PSC Code | 5133 |
| Material Application | Cast Iron; Hardened Steel; Nickel Alloy; Non-Ferrous Metals; Stainless Steel; Steel |
