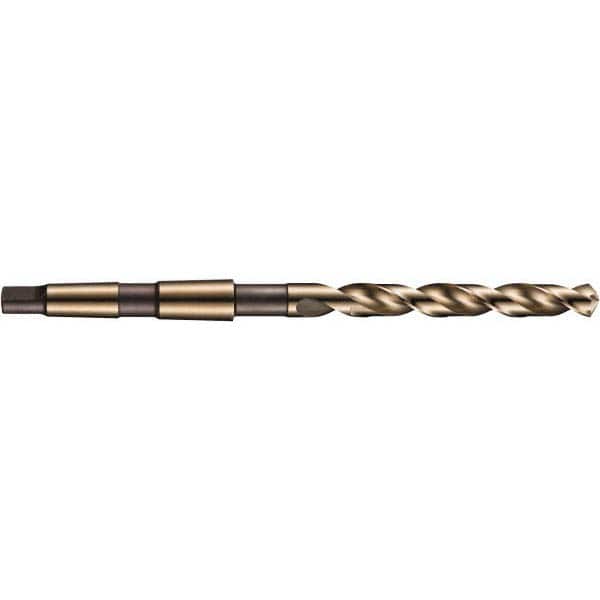

DORMER - 12.8mm, 1MT 118° Point Cobalt Taper Shank Drill Bit
Item #: 80995475
Brand: DORMER
Model #: 0045299
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 12.80 |
| Drill Bit Size (Decimal Inch) | 0.5039 |
| Drill Point Angle | 118 |
| Shank Taper Designation | 1MT |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Overall Length (mm) | 182.00 |
| Flute Length (mm) | 101.00 |
| Flute Length (Decimal Inch) | 3.9794 |
| Spiral Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 345 |
| Drill Bit Diameter Tolerance (mm) | 0.000 to -0.027 |
| Specification Designation | DIN |
| Series/List | A730 |
