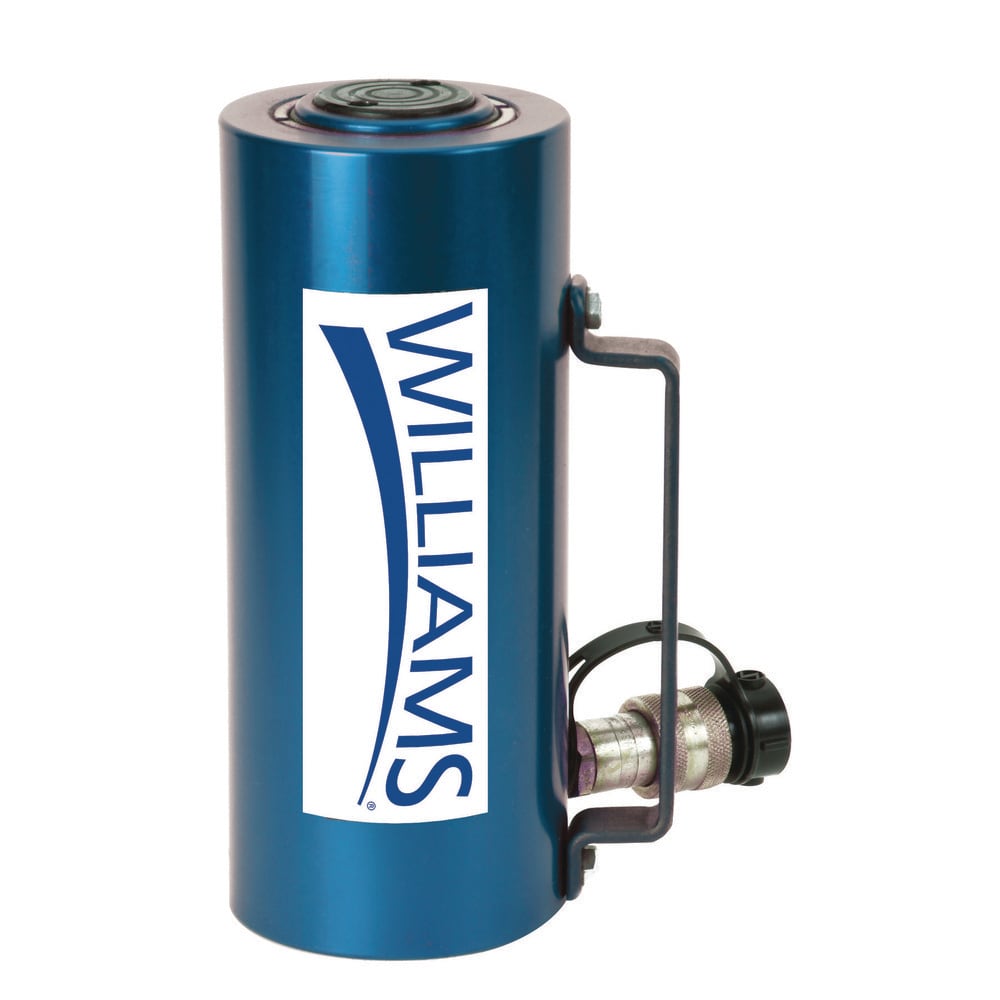

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 100 TON; Stroke Length: 10; Piston Stroke (Decimal Inch): 10.0000; Oil Capacity: 7.65; Cylinder Effective Area: 20.70; Lowered Height: 14.5
Item #: 54364393
Brand: Williams
Model #: 6CA100T10
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 100 TON |
| Stroke Length | 10 |
| Piston Stroke (Decimal Inch) | 10.0000 |
| Oil Capacity | 7.65 |
| Cylinder Effective Area | 20.70 |
| Lowered Height | 14.5 |
| Retracted Length | 14.50 |
| Extended Length | 24.5 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 8.00 |
| Rod Diameter | 4.30 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Aluminum |
| Rod Thread Size | .55 |
| Saddle Diameter | 3.5 |
| Maximum Height (Inch) | 24.5 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
