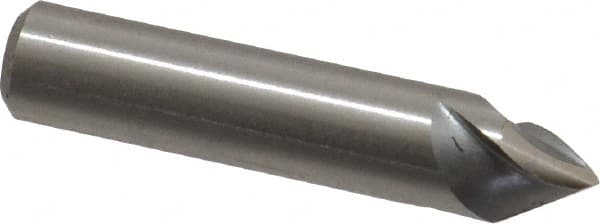

M.A. Ford - 1/4" Head Diam, 1/4" Shank Diam, 3 Flute 60° High Speed Steel Countersink
Item #: 01053669
Brand: M.A. Ford
Model #: 92025001
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Included Angle | 60 |
| Countersink Material | High Speed Steel |
| Countersink Finish/Coating | Bright |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 1-1/4 |
| Tip/Nose Diameter (Decimal Inch) | 0.0700 |
| Countersink Application | Chamfering; Countersinking; Deburring |
| End Type | Single |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Centerline Angle | 30 |
| PSC Code | 5133 |
| Material Application | Aluminum; Brass; High Nickel Steel; Magnesium; Magnesium Alloy; Monel; Plastics |
