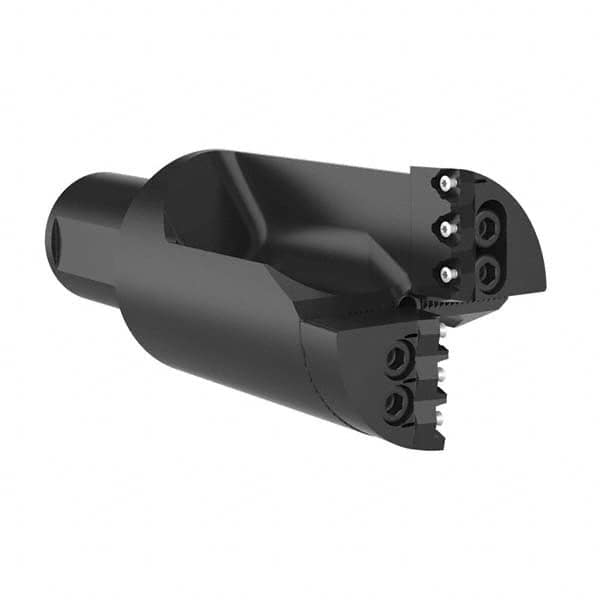

Allied Machine and Engineering - 88.6mm Max Drill Depth, 1xD, 81.3mm Diam, Indexable Insert Drill
Item #: 12328993
Brand: Allied Machine and Engineering
Model #: SP52X10-50M
| Product Specifications | |
|---|---|
| Drill Style | SP52 |
| Drill Diameter (mm) | 81.30 |
| Drill Diameter (Decimal Inch) | 3.2000 |
| Maximum Drill Depth (mm) | 88.60 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 50.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1xD |
| Number of Drill Inserts | 6 |
| Maximum Drill Diameter (Decimal Inch) | 3.4000 |
| Maximum Drill Diameter (mm) | 86.40 |
| Overall Length/Projection (mm) | 209.10 |
| Insert Compatibility | OP-05T308 |
| Body Length (mm) | 129.10 |
| Shank Length (mm) | 80.00 |
| Series | Revolution Drill |
