Guhring - 16mm Body Diam, 120°, 115mm OAL, Cobalt Spotting Drill - Benchmark Tooling

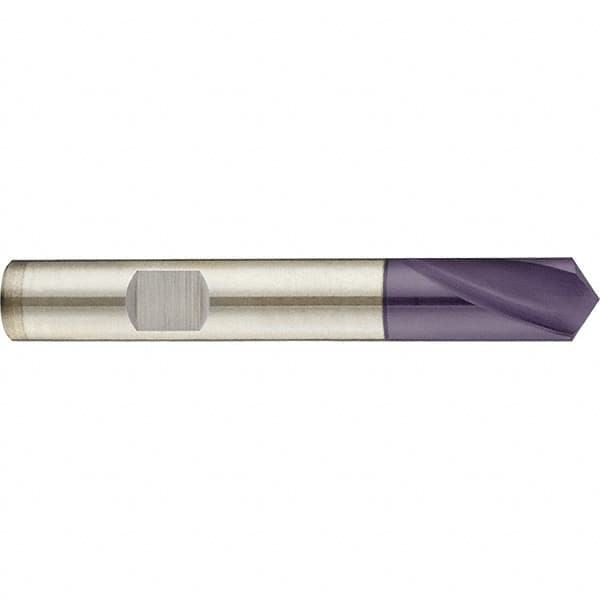

Guhring - 16mm Body Diam, 120°, 115mm OAL, Cobalt Spotting Drill


Item #: 98841596
Brand: Guhring
Model #: 9011350160000

Features and Benefits

Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
nano-FIREX is a micro-layered coating that combines the characteristics and universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. The nano-FIREX(R) structure increases overall thickness and shock resistance when compared to FIREX . FIREX is a proprietary coating exclusive to Guhring, Inc.
Product Specifications
Body Diameter (mm) 16.00
Body Diameter (Decimal Inch) 0.6299
Drill Point Angle 120
Spotting Drill Material Cobalt
Spotting Drill Finish/Coating Nano-FIREX
Overall Length (mm) 115.00
Flute Length (mm) 37.50
Shank Diameter (mm) 16.0000
Drill Bit Grade General Purpose
Number of Flutes 2
Length Designation Standard
Cutting Direction Right Hand
Tool Application Spot Drilling
Series/List 1135
Additional Information DIN 6535-HB Shank; h6 Tolerance; Weldon Flat Shank
$169.87
