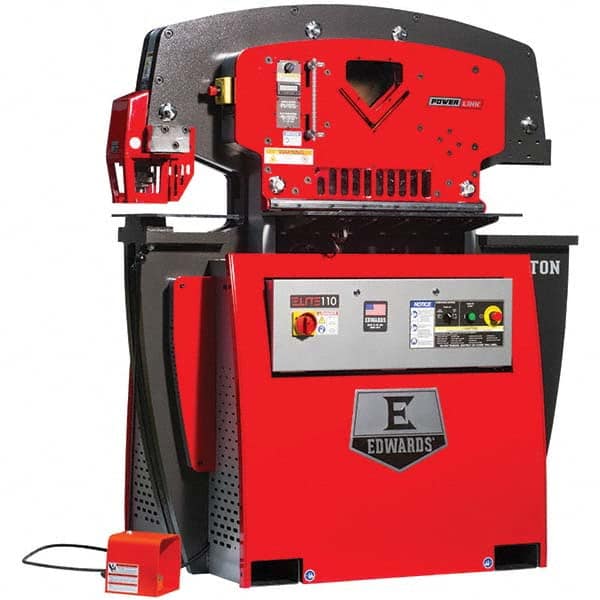

Edwards Manufacturing - Ironworkers Throat Depth (Inch): 11-3/4 Punching Pressure (Ton): 110
Item #: 13339767
Brand: Edwards Manufacturing
Model #: ELT110-3P208
Product Specifications
Ironworkers; Throat Depth (Inch): 11-3/4 ; Punching Pressure (Ton): 110 ; Punching Capacity (Inch): 1-3/8 diam. in 1 Mild Steel ; Pipe Notching Capacity (Inch): 2-1/2 x 6 x 1/2 ; Square/Rectangular Notching Capacity (Inch): 1-1/4 ; 90 V. Notching Capacity (Inch): 5 x 5 x 3/8
| Throat Depth (Inch) | 11-3/4 |
| Punching Pressure (Ton) | 110 |
| Punching Capacity (Inch) | 1-3/8 diam. in 1 Mild Steel |
| Pipe Notching Capacity (Inch) | 2-1/2 x 6 x 1/2 |
| Square/Rectangular Notching Capacity (Inch) | 1-1/4 |
| 90 V. Notching Capacity (Inch) | 5 x 5 x 3/8 |
| Flat Bar Shear Length (Inch) | 42 |
| 45 Angle Shearing Capacity (Inch) | 3/4 x 14; 1 x 12 |
| Phase | 3 |
| Voltage | 208 |
| Hydraulic Pressure (psi) | 3000.00 |
| Overall Width (Inch) | 44-7/8 |
| Overall Depth (Inch) | 65-1/8 |
| Overall Height (Inch) | 61-9/16 |
