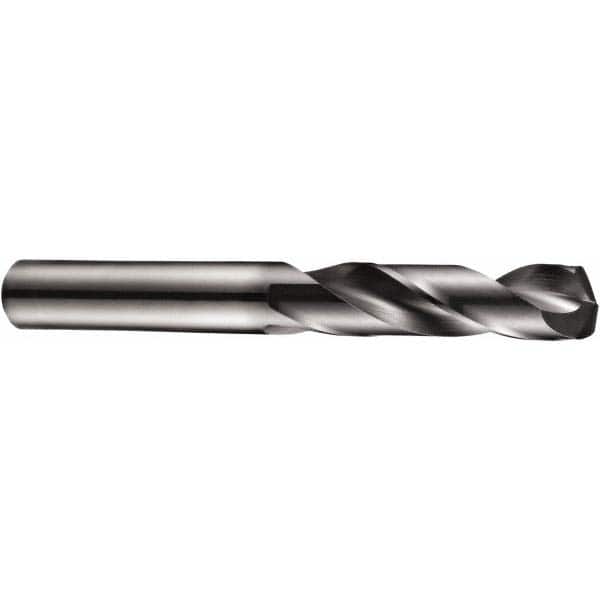

DORMER - 1/2" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 76545722
Brand: DORMER
Model #: 0624821
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5000 |
| Drill Bit Size (Inch) | 1/2 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 60.00 |
| Overall Length (mm) | 107.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Four Facet, Split Point |
| Shank Diameter (mm) | 14.00 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 45.00 |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Specification Number | DIN 6535HA; DIN 6537K |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | R458 |
