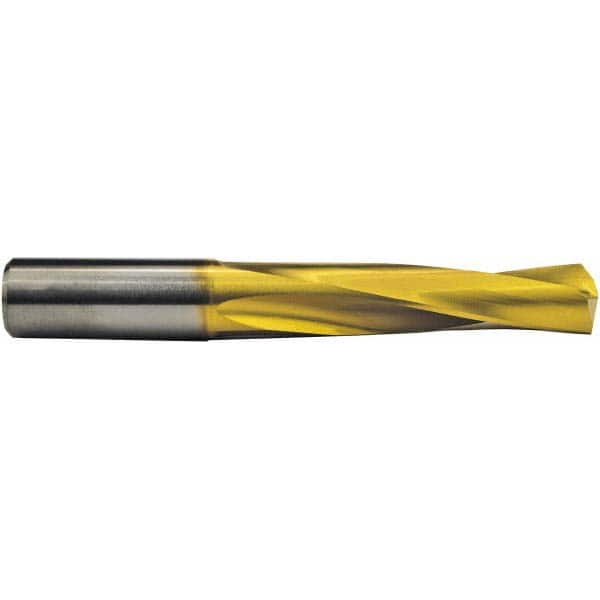

M.A. Ford - 31/64" 135° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 87926416
Brand: M.A. Ford
Model #: 20548440
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Drill Bit Size (Inch) | 31/64 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 2-3/16 |
| Flute Length (Decimal Inch) | 2.1875 |
| Overall Length (Inch) | 3-11/16 |
| Overall Length (Decimal Inch) | 3.6875 |
| Shank Diameter (Decimal Inch) | 0.4844 |
| Shank Diameter (Inch) | 31/64 |
| Specification Designation | Not Specified |
| Spiral Type | Slow Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Number of Margins | 1.000 |
| Series/List | 205 |
