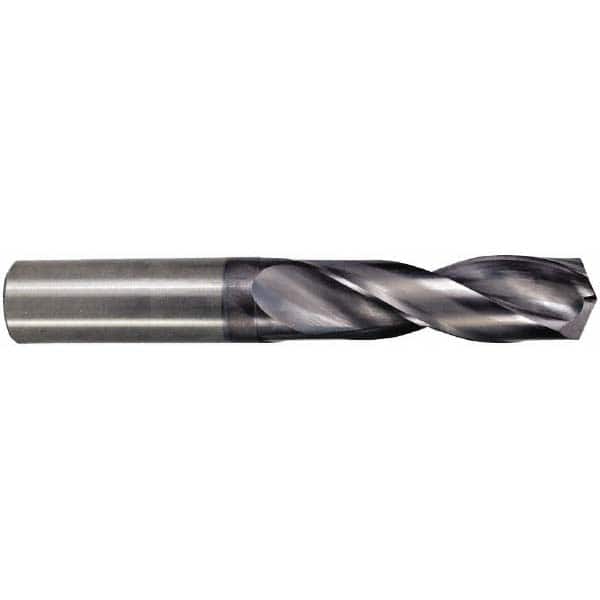

M.A. Ford - 8.2mm 142° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 58250481
Brand: M.A. Ford
Model #: 2XDSS3228A
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALtima(R) is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima(R) is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3228 |
| Drill Bit Size (mm) | 8.20 |
| Drill Point Angle | 142 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | ALtima |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 43.00 |
| Overall Length (mm) | 89.00 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Specification Designation | Not Specified |
| Spiral Type | Fast Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.015 |
| Number of Margins | 1.000 |
| Series/List | 2XDSS |
